Tightening Coulter Hardware

IMPORTANT:

N69434
N69434-UN-17MAR05

N69435
N69435-UN-17MAR05

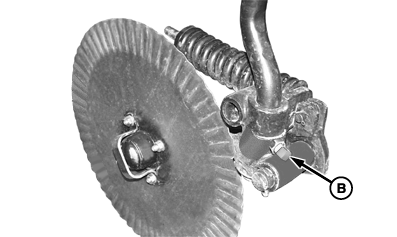

Regular set screws (A), cone point set screw (B), and jam nuts on each coulter shaft MUST be tight to prevent damage to machine components or tires from coulter.

Verify regular set screws, cone point set screw, and jam nuts are tight on each coulter shaft.

OUO6084,000213C-19-20091005
