Replacing Fuses

N64755-UN-19DEC03

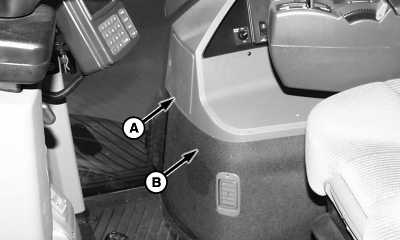

A - Fuse Panel

B - Upholstery

Remove cover to access fuse panel (A).

Remove upholstery (B) from side console to access relays.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
3 Amp	Purple
5 Amp	Brown
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
25 Amp	Clear
30 Amp	Green

IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.
