Adjusting Breakaway Section Springs

N42190FQ
N42190FQ-UN-14JUL98

N67924
N67924-UN-12OCT04

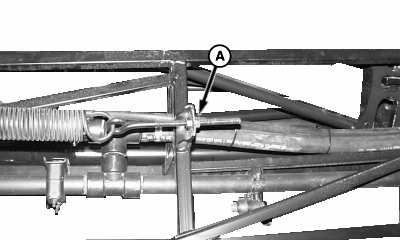

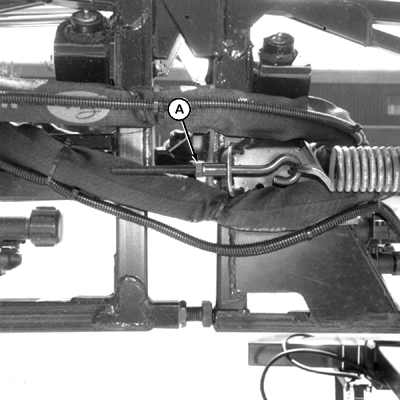

A - Eyebolt Nut

Tighten anchoring eyebolt nut (A) to obtain a spring length of 432 mm (17 in.) hook to hook. This provides the recommended (and maximum) spring tension.
