Replacing Front Grille Flood Light Bulbs

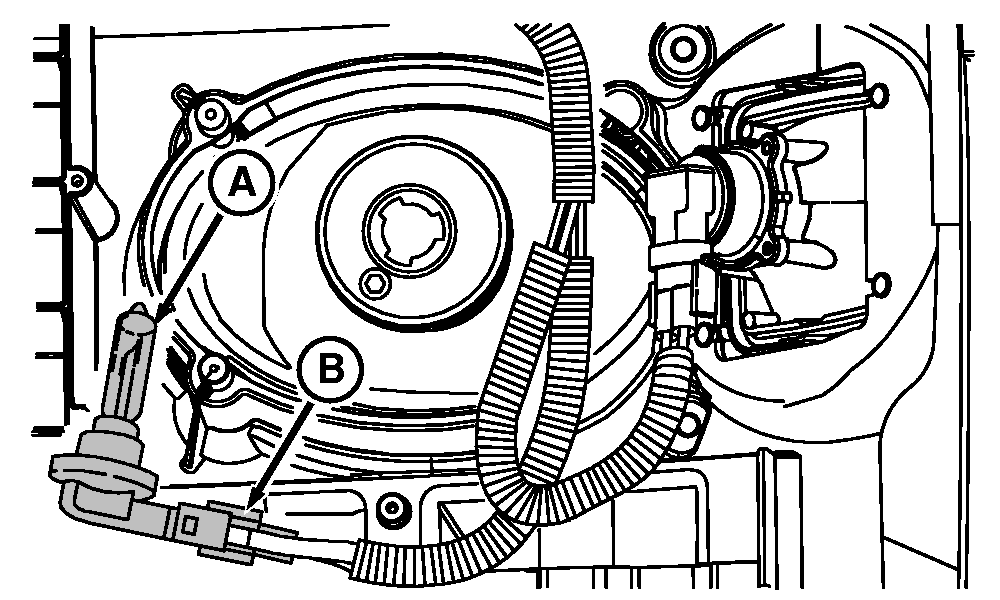

  1. RXA0068499
    RXA0068499-UN-09SEP03

    Right-Hand Side Shown

    A - Light Bulb

    B - Wiring Harness Plug

    Raise hood.



  2. Disconnect wiring harness plug (B).

  3. Rotate light bulb (A) counterclockwise approximately 1/4 turn and remove.

  4. Install light bulb in reverse order of removal.

DP99999,0000170-19-20070118
