Inspect Hydro Isolators—Annually

N74794-UN-16JAN07

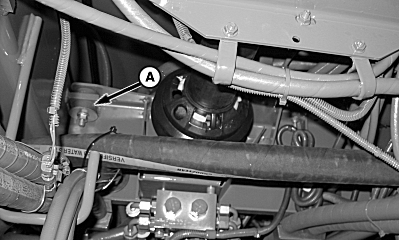

A - Isolators

Inspect three hydro isolators (A) for loose, damaged, or missing bushings. There are two isolators at the front of the hydrostatic pumps and one at the rear.
