Adjusting Inner Fold Cylinder

1.

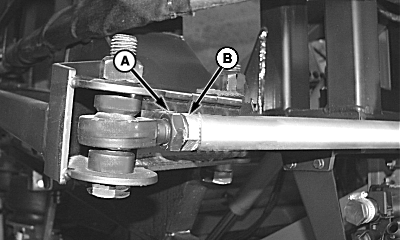

   N60608-UN-25JUL02

   A - Jam Nut

   B - Cylinder Rod

   Level and raise boom to highest position and fold in against boom stops.

---




2. Loosen jam nut (A) and turn cylinder rod (B) (in or out as needed) until boom is directly above boom rest and will not bind when lowered into the transport position.

3. Tighten jam nut to specification.

   Item	Measurement	Specification
   Inner Fold Cylinder Jam Nut	Torque	508 N·m (375 lb-ft)
