Filling Rinse Tank Using Left-Hand Rinse Fill

  1. IMPORTANT: Damage to rinse tank and surrounding structure can occur when filling at a high rate if tank lid is not removed. Remove tank lid when filling at high rates to avoid damage.

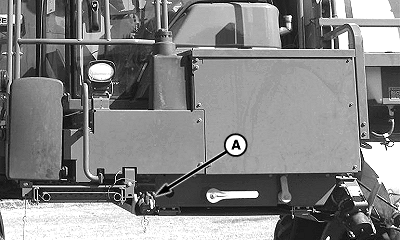

    N83288
    N83288-UN-11FEB09

    A - Filler Cap

    Remove fill cap (A).


  2. Connect fill hose and fill tank to desired level.

  3. After tank is filled, remove fill hose.

  4. Re-attach fill cap.

DT31797,0000271-19-20090211
