Positioning Crop Divider For Transport

1.

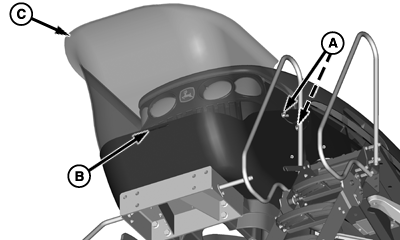

   N90987-UN-25JAN11

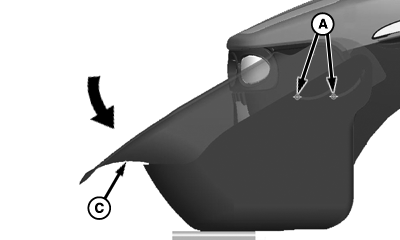

   N90986-UN-25JAN11

   A - Wing Screw (2 Used)

   B - Tab

   C - Upper Crop Shield

   Loosen wing screws (A).

---




2. Press tab (B) and rotate upper crop shield (C) as shown.

3. Tighten wing screws.
