Adjust Rearview Mirrors

N83315
N83315-UN-13FEB09

N83052
N83052-UN-23JAN09

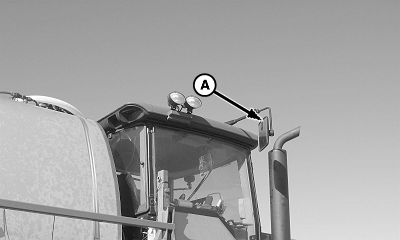

A - Right-hand Cab Mirror

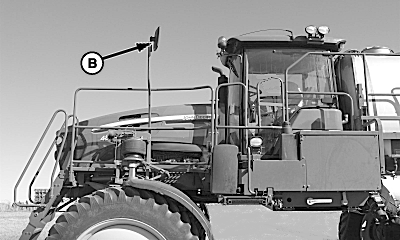

B - Left-Hand Handrail Mirror

Adjust right-hand mirror (A) and left-hand mirror (B) for desired rear visibility by pivoting mirror heads.

N67980
N67980-UN-11OCT04

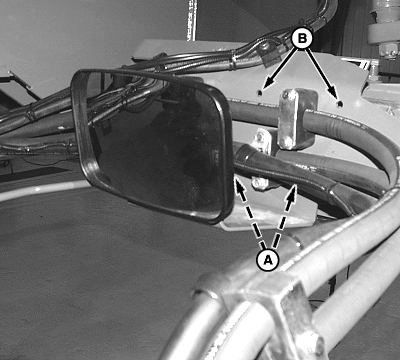

A - Cap Screws

B - Holes

To change undercarriage mirror height (mirror located on right front axle):

NOTE: Undercarriage mirror can be positioned for taller crops by using two top holes in right-hand tread adjust frame, or for shorter crop conditions using two lower holes.

  1. Remove cap screws (A) and flange nuts.

  2. Align mirror bracket with two upper holes (B).

  3. Reinstall cap screws and flange nuts.

OUO6041,00000AF-19-20090213
