Filling Fuel Tank

CAUTION: Shut off engine before filling fuel tank.

NOTE: Fuel tank capacity is 496L (131 gal).

N83527
N83527-UN-27FEB09

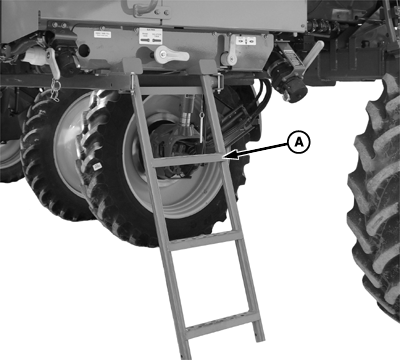

A - Fuel Fill Ladder

Lower fuel fill ladder (A).

N83528
N83528-UN-27FEB09

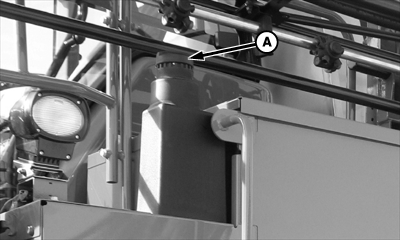

A - Fuel Tank Cap

Remove fuel tank cap (A). Fill tank with proper grade of diesel fuel. (See Lubrication And Maintenance section for diesel fuel specifications.)

OUO6041,00000CF-19-20090303
