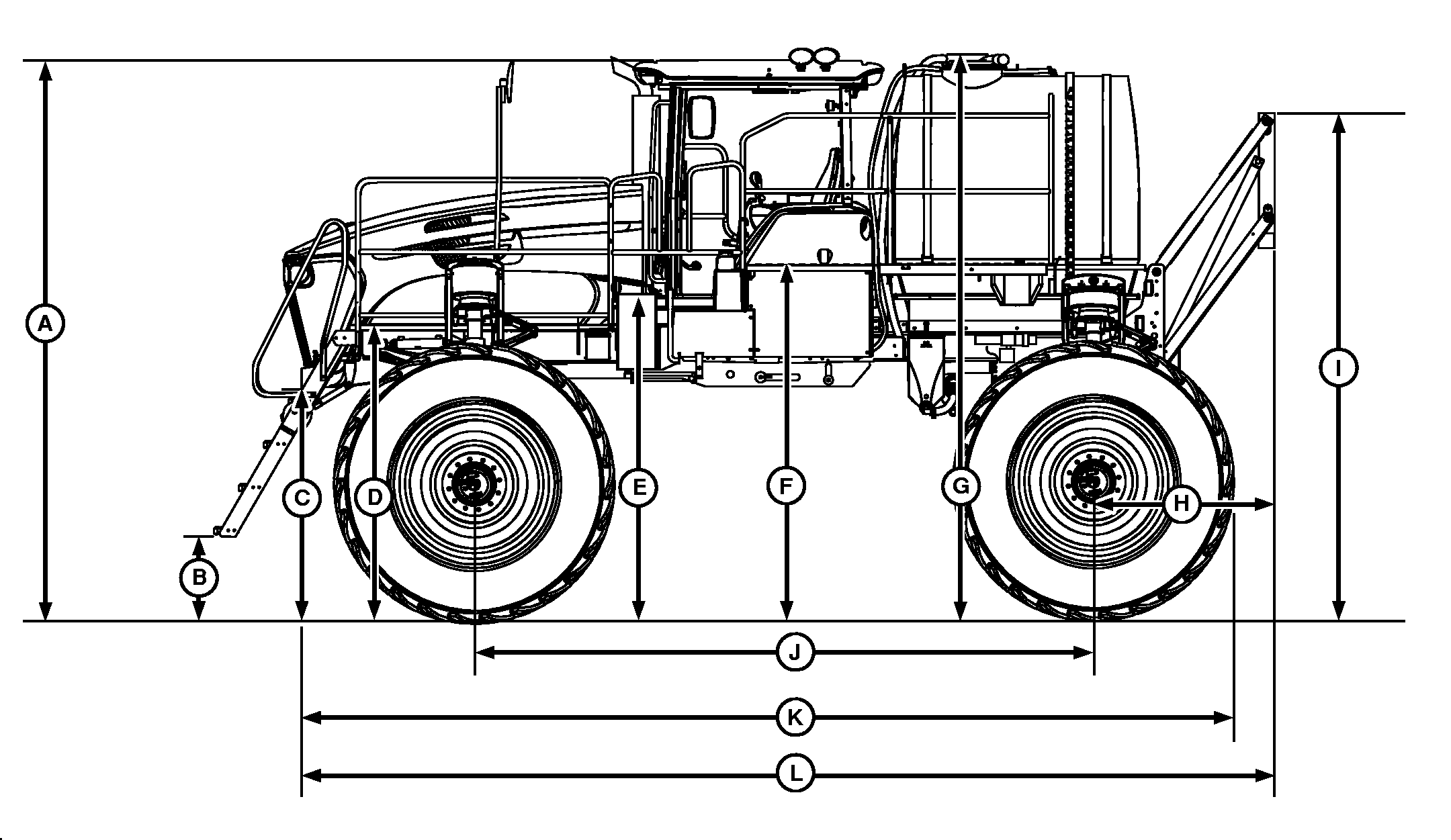

Standard Machine Dimensions

N83301-UN-12FEB09

A - Cab Height—Springs Inflated, 3963 mm (156.0 in.)

A - Cab Height—Springs Deflated, 3861 mm (152.0 in.)

B - Bottom of Ladder, 533 mm (21 in.)

C - Under Frame Clearance, 1562 mm (61.5 in.)

D - First Platform Step, 1992 mm (78.4 in.)

E - Second Platform Step, 2096 mm (82.5 in.)

F - Top Platform, 2409 mm (94.8 in.)

G - Top Of The Eductor Fittings— Suspension Centered, 3909 mm (153.9 in.)

H - Tire Center-to-Rearmost Boom Point, 1676 mm (66.0 in.)

I - Highest Point on Boom In Lowest Cradle Position— 3832 mm (150.9 in.)

I - Highest Point on Boom In Highest Cradle Position—4115 mm (162.0 in.)

J - Wheelbase, 4300 mm (169.3 in.)

K - Front of Machine-to-Rear of Rear Tire, 6073 mm (239.1 in.)

L - Front of Machine-to-Rearmost Boom Point, 7554 mm, (297.4 in.)
