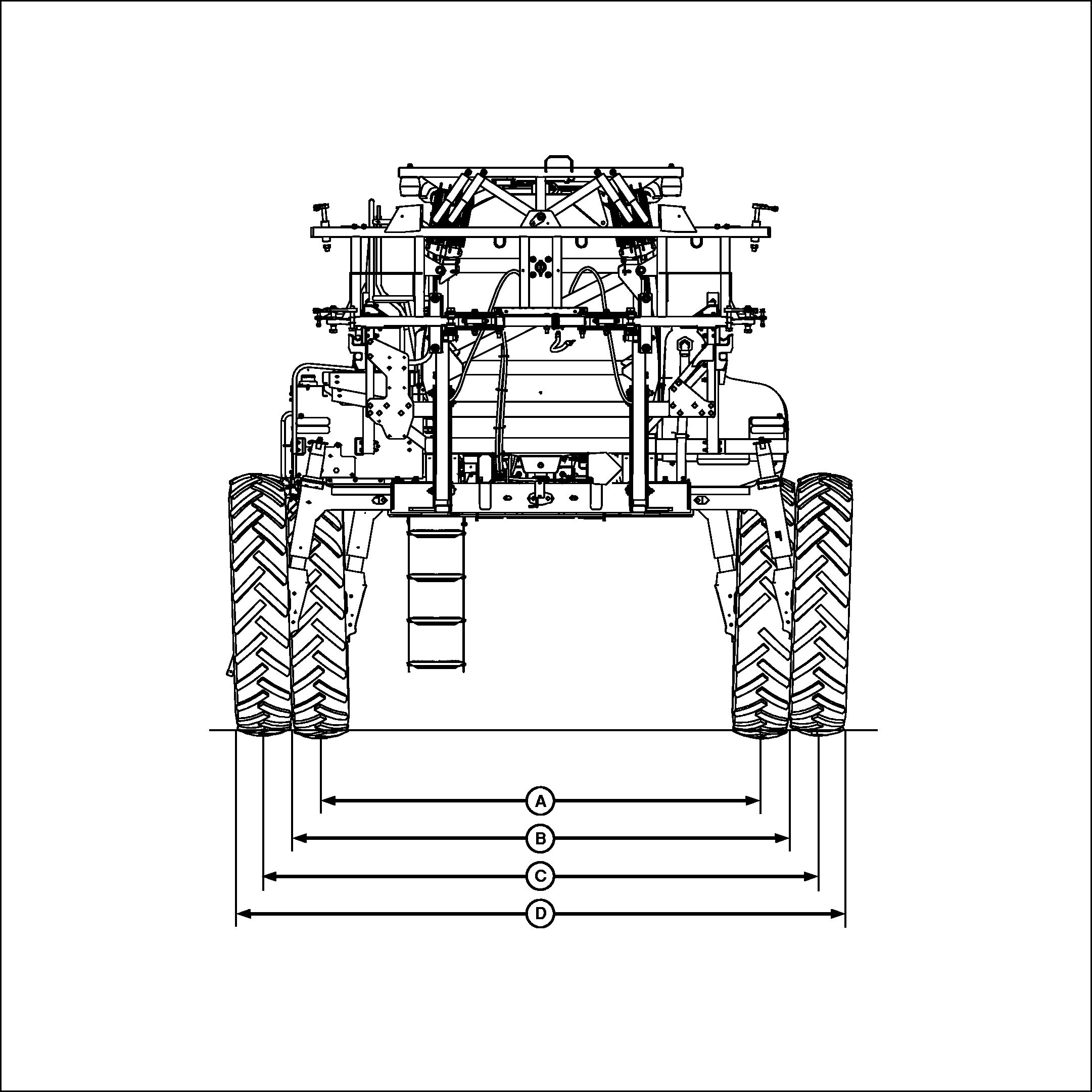

Dimensions—All Machines

N83325
N83325-UN-24FEB09

A - Narrowest Tread Setting, 3048 mm (120 in.)

B - Widest Point on Wheels at Narrow Setting (planetary hub) 3607 mm (142.0 in.)1

C - Widest Tread Setting, 3861 mm (152 in.)

D - Widest Point on Wheels at Widest Setting (planetary hub) 4420 mm (174.0 in.)1

1 Equipped with standard tires.

OUO6041,0000112-19-20090224
