Boom Raise/Lower Switches

N63295-UN-15JUL03

N76063-UN-08JUN07

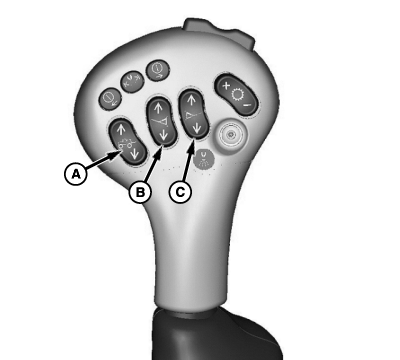

A - Center Boom Raise/Lower Switch

B - Left-Hand Boom Raise/Lower (Fold/Unfold) Switch

C - Right-Hand Boom Raise/Lower (Fold/Unfold) Switch

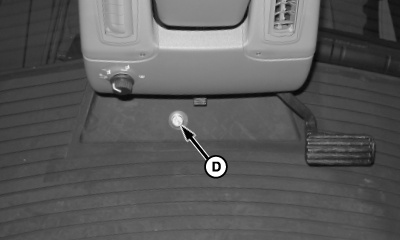

D - Boom Fold Mode Switch

NOTE: The button functions shown are assuming boom is fully unfolded. Depressing & holding boom fold mode switch (D) will change the function of the boom raise/lower switches to the function shown in ( ). See Boom fold/unfold procedures in Boom Section.

Push top of switch (A) to raise the boom center section and bottom of switch to lower the boom center section.

Push top of switch (B) to raise left-hand boom sections and bottom of switch to lower left-hand boom sections.

Push top of switch (C) to raise right-hand boom sections and bottom of switch to lower right-hand boom sections.
