Adjust Marker Lights On Machines With Manual Tread Adjust

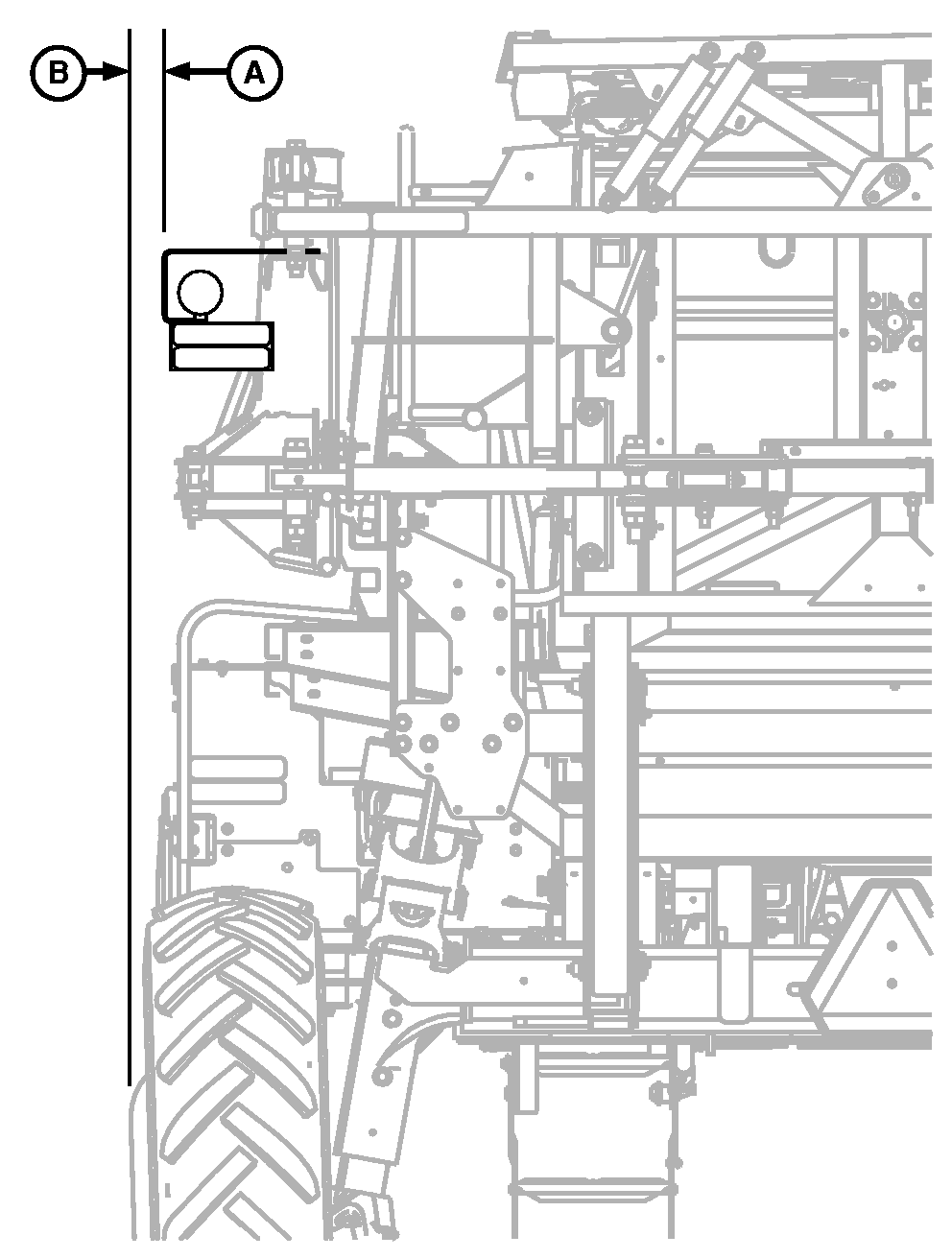

N79814-UN-29FEB08

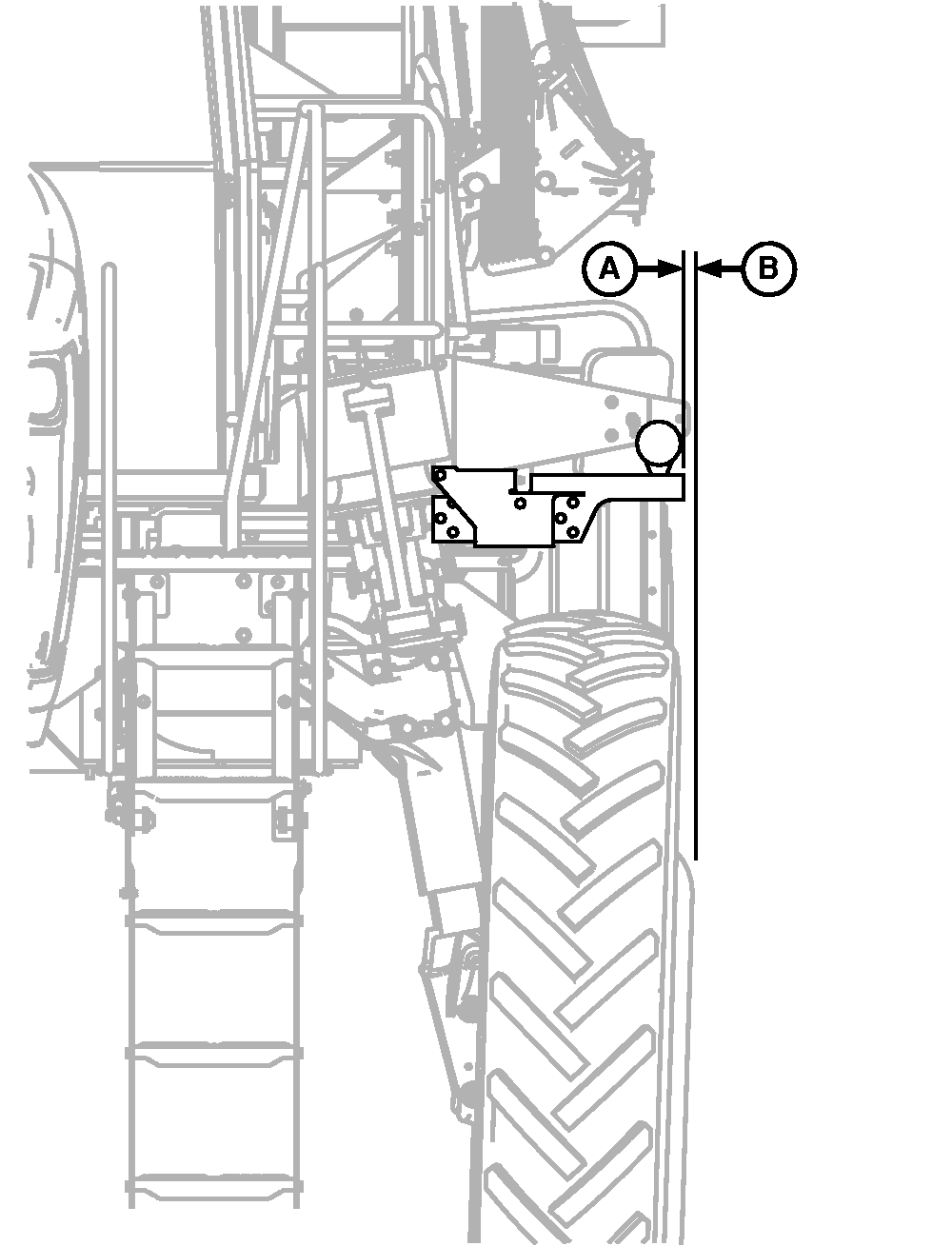

N83561-UN-03MAR09

A - Outside Edge of Marker Light

B - Widest Part of Machine

If the machine equipped with manual tread adjust is being operated with tread wider than the narrowest setting, the outside edge of the marker lights (A) in four locations must be adjusted to within 400 mm (15.75 in.) of the widest part of the machine (B). Three settings for lights are available.
