Eductor

These instructions cover changes to standard eductor operation. Refer to Wet System Section for standard operating instructions.

To lower eductor:

1.

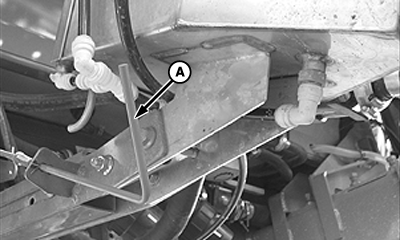

   N82676-UN-12JAN09

   Storage Position

   A - Handle

   Pull handle (A) to lower eductor from storage position.

---




2.

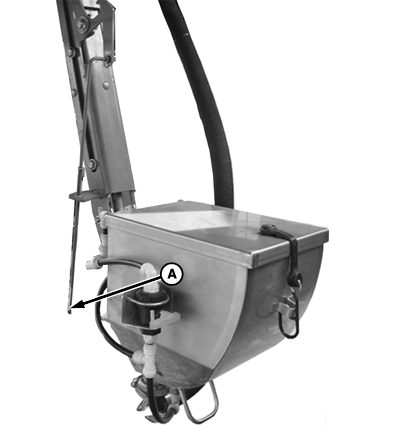

   N83601-UN-05MAR09


   N83602-UN-05MAR09

   Service Position

   A - Handle

   Pull handle (A) again to lower eductor into service position.

---

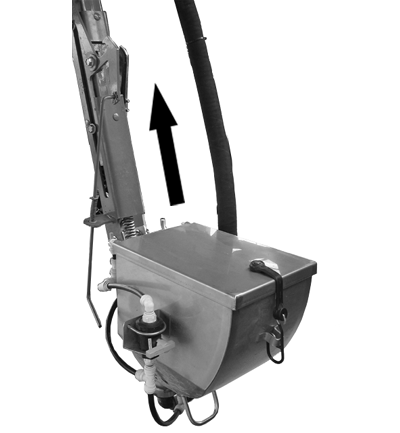

N83603-UN-05MAR09

Service Position

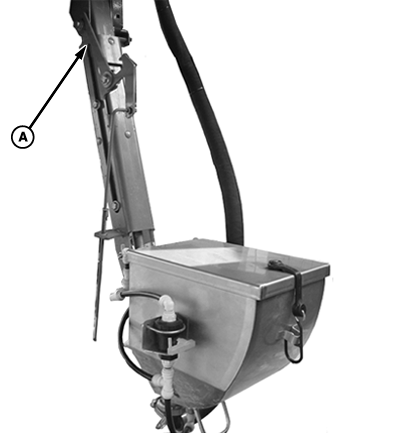

N83604-UN-05MAR09

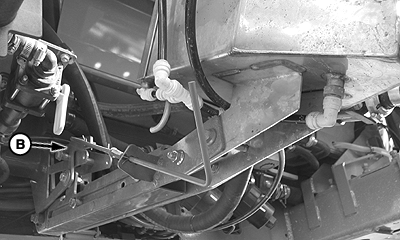

N82684-UN-13JAN09

Storage Position

A - Lower Latch

B - Upper Latch

1. Raise eductor to engage latch (A).

2. Raise eductor to storage position and engage latch (B).
