Calibrate Boom Level Position

1. NOTE: Calibrating Boom Height Sensors should be done before any other changes or calibrations are performed.

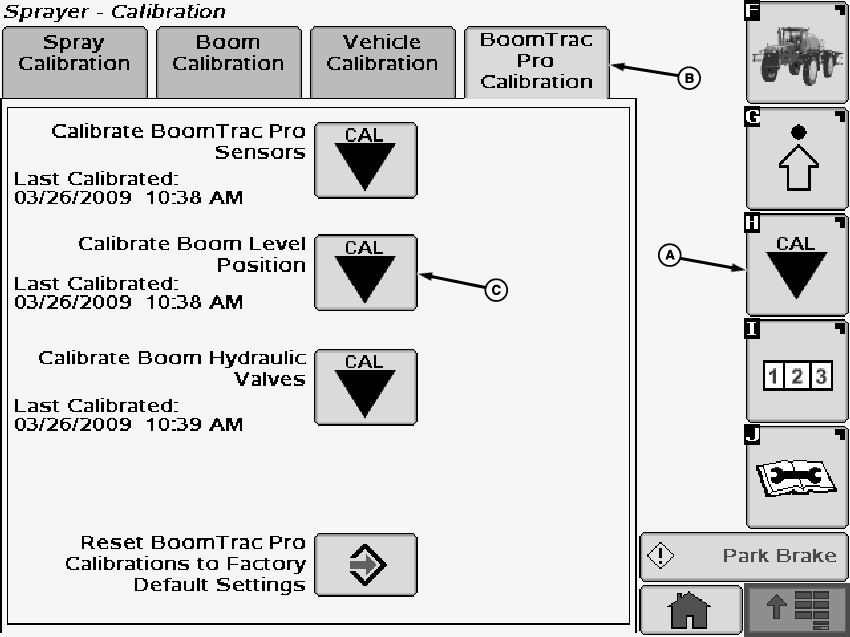

   N83827-UN-31MAR09

   A - Calibration Softkey

   B - BoomTrac Pro Calibration Tab

   C - Calibration Icon

   Select the Calibration softkey (A).

---




2. Select the BoomTrac Pro Calibration tab (B).

3. Select calibration icon (C) next to Calibrate Boom Level Position. Calibrate Boom Level Position screen will appear.

4.

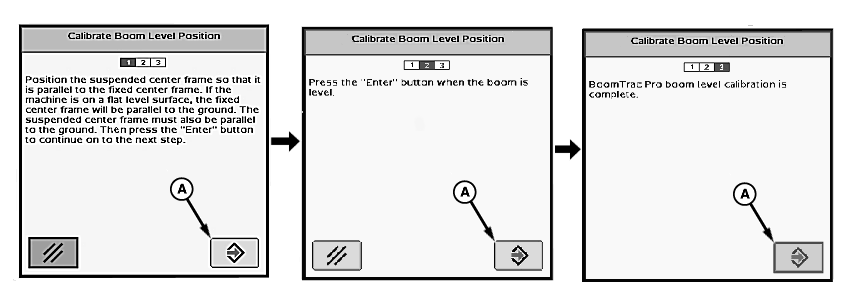

   N77057-UN-25JUL07

   A - Enter Button

   Follow instructions on first screen. When finished select “Enter” button (A) to proceed to next screen.

---




5. “BoomTrac Pro boom level calibration is complete.” will be displayed.
