Operate Boom Section Switches

N80050-UN-29FEB08

N74864-UN-19JAN07

N74865-UN-19JAN07

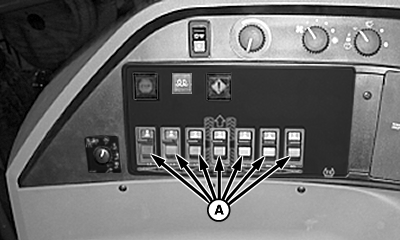

A - Boom Section Switches

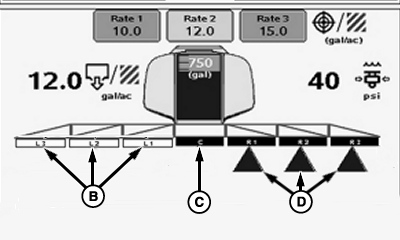

B - Sections OFF

C - Section Enabled

D - Section Spraying

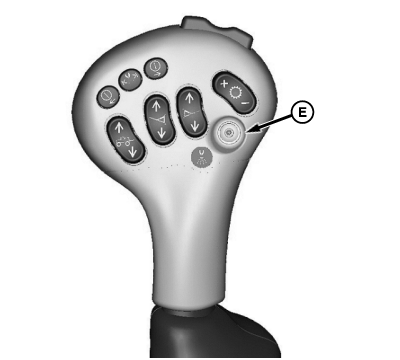

E - Master ON/Off switch

Lift boom section switches (A) to enable corresponding boom sections. Disabled sections appear as a white box with black lettering. Enabled sections (C) appear as a black box with white lettering. Enabled sections (D) that have been activated (are spraying currently) with Spray System Master ON/OFF Switch (E) show a cone beneath the section.

NOTE: Boom sections numbered as 1 closest to center on designated side, and 3 being farthest to outside.
