Reduce Travel Speed

1. CAUTION: To avoid possible serious injury or death to you or others, always use seat belt properly.

   IMPORTANT: Premature brake wear and damage can occur if primary braking is accomplished using the brake pedal, instead of the multifunction control handle. Always pull the multifunction control handle back before using the brake pedal.


   N67608-UN-16SEP04


   N76703-UN-14JUN07


   N88448-UN-29APR10

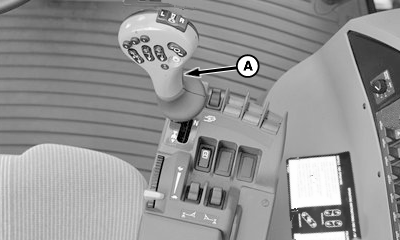

   A - Multifunction Control Handle

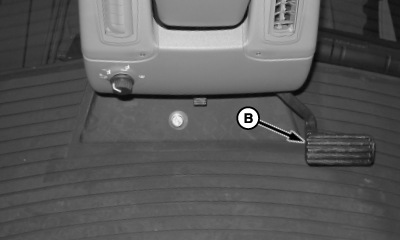

   B - Brake Pedal

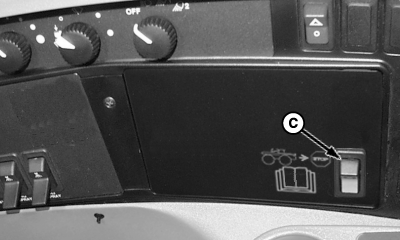

   C - Secondary Brake Switch

   To slow machine, pull back on multifunction control handle (A) for primary braking.

   NOTE: Braking will occur from hydro system.

---




2. For more aggressive (faster) braking press down on brake pedal (B) after multifunction control handle has been pulled back. Be prepared for a rapid decrease in speed. Service braking stops the machine very quickly.

   NOTE: Braking will now occur from rear caliper brakes.

3. In the event that primary (hydro) and service (brake pedal) systems are not operating correctly, press the secondary brake switch (C).

   IMPORTANT: The secondary brake engages the park brake system. Engaging secondary brake system while machine is moving causes significant wear to the park brake components. Park brakes will need to be tested to verify proper operation after using the secondary brake. (See Verify Proper Operation Of Park Brakes in Operating The Machine section.)

   NOTE: Secondary brake switch does not need to be engaged when parking machine. Park brakes are automatically applied when multifunction control handle is placed in the "PARK" position and the SprayStar system reads "0" mph for 0.5 seconds or the engine is shut "OFF".
