Replace Hydrostatic and Hydraulic Filters—500 Hours

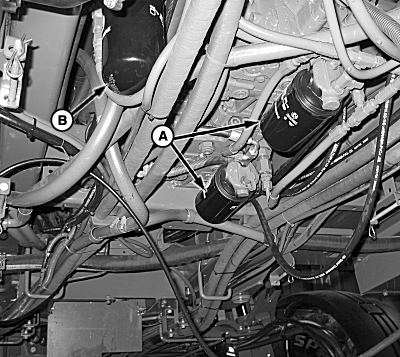

  1. N74792
    N74792-UN-16JAN07

    A - Hydrostatic Filters

    B - Hydraulic Filter

    Remove hydrostatic filters (A) and hydraulic filter (B).


  2. Lubricate new filter packing with John Deere Torq-Gard Supreme™ 10W30 or equivalent.

  3. Install and hand tighten filter elements.

  4. Check oil level and add as required (see Checking Hydrostatic And Hydraulic Oil in the Engine and Drivetrain section).

Torq-Gard Supreme is a trademark of Deere & Company

OUO6092,0000321-19-20100408
