Lubricate Center Boom Section

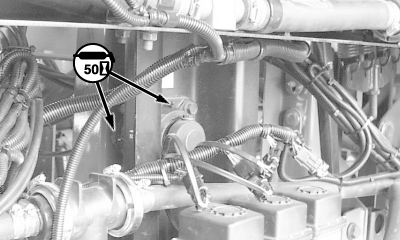

Center Pivot Bearings

N70394-UN-27JUN05

One Fitting Each

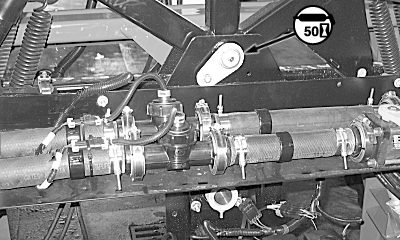

Pivot Assembly Connection Pin

N88062-UN-08APR10

One Fitting

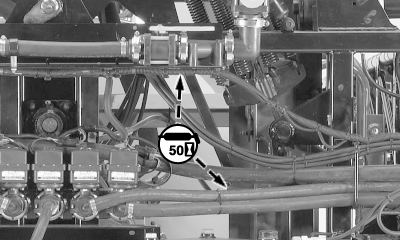

Roll Bias Link

N80038-UN-21FEB08

Two Fittings

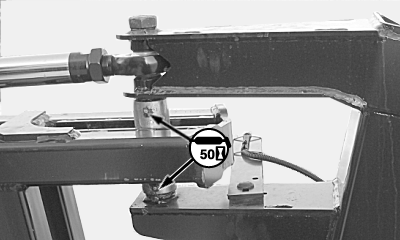

Upper Pivot Bushing

N76951-UN-10JUL07

Two Fittings Each Side of Section

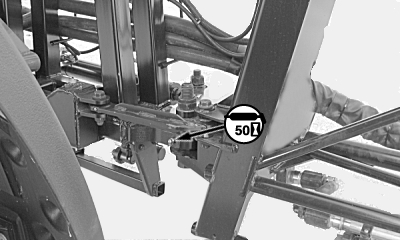

Lower Pivot Bushing

N76952-UN-10JUL07

One Fitting Each Side of Section

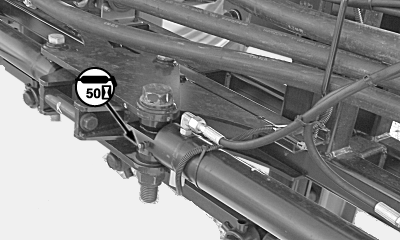

Inner Wing Fold Cylinder Base End

N76953-UN-10JUL07

One Fitting

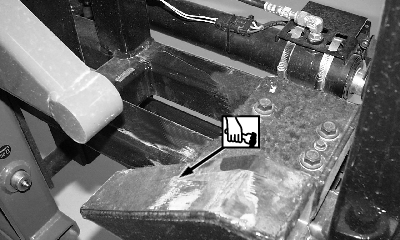

Roll Lockout Bracket Contact Area

N70610-UN-27JUL05

Brush on Grease Daily - Each End of Section
