Cab Pressure Indicator

N70549-UN-11JUL05

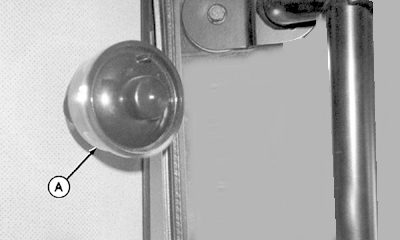

A - Cab Air Pressure Indicator

CAUTION: Exposure to chemicals, including pesticides, can cause injury or death. Wear PERSONAL PROTECTIVE EQUIPMENT, in accordance with chemical manufacturer’s label.

DO NOT RELY ON THIS CAB, CAB PRESSURE INDICATOR, OR CAB AIR FILTERS TO PROTECT AGAINST CHEMICAL EXPOSURE.

Cab air pressure indicator (A) is located in cab left-hand upper rear corner.

Air pressure indicator assists in identifying air flow through fresh air filter and potential leaks in cab seals. With door and windows closed and blower ON, numbers on indicator provide a relative indication of pressure only. Operator should note initial indicator reading when filter is new. Indicator reading is normally in numeric middle range and decreases as filter collects dust and debris.

If indicator reading falls to either scale end, refer to Troubleshooting section of this manual.
