Setup BoomTrac Pro Sensors

N88442-UN-28APR10

A - Boom Section Softkey

B - Outer Sensor Placement Softkey

C - Inner Sensor Placement Softkey

D - Input box

E - Input Box

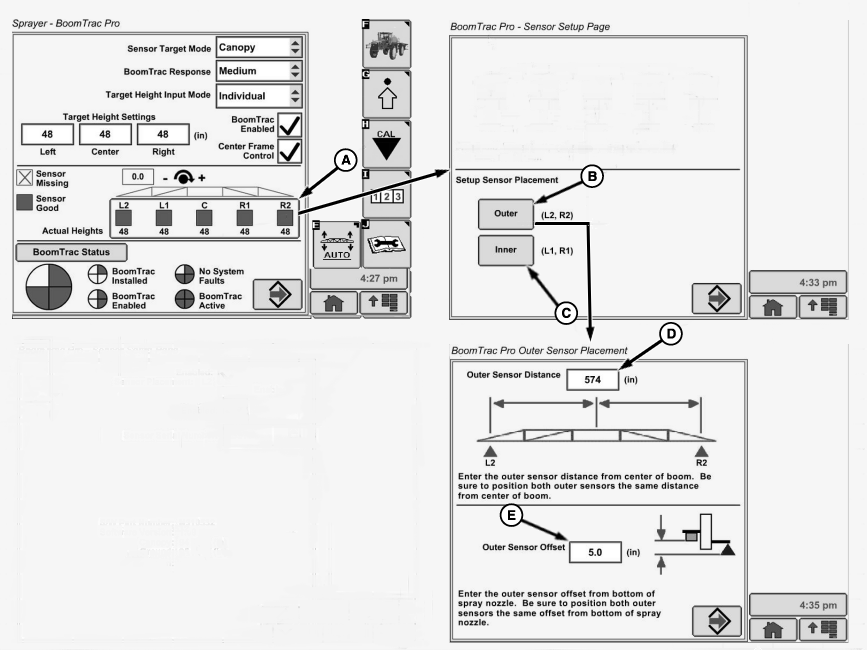

1. Select BoomTrac Pro button on Sprayer Main Page.

2. Select Boom Section softkey (A) on BoomTrac Pro Setup Page. BoomTrac Pro Sensor Setup page will appear.

3. Select the Outer Sensor Placement softkey (B) to access the Outer Sensor Placement page where the outer sensor distance can be entered in the input box (D) and the outer offset distance can be entered in the input box (E).

   NOTE: Outer Sensor Distance (D)— this distance is from the center of the suspended center frame to the center of the outer boom BoomTrac Pro height sensor.

   Outer Sensor Offset (E)— The distance from the bottom of the BoomTrac Pro sensor to the bottom of the boom (spray nozzles). This value should only be changed if a different bracket is used or placement of the sensor on the boom is changed.

4. NOTE: Inner Sensor Placement softkey only available on 5 sensor systems.

   Select the Inner Sensor Placement softkey (C) to access the Inner Sensor Placement page.

5.
   N88443-UN-28APR10

   A - Input Box

   B - Input Box

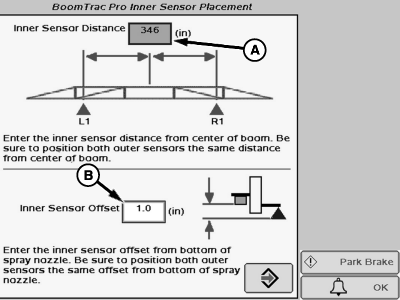

   Enter the inner sensor distance in input box (A) and enter the inner offset distance in the input box (B).

   NOTE: Inner Sensor Distance (A)— This input box is only valid for a 5 sensor system in which the vehicle has two sensors on the inner boom section and two on the breakaway sections. The distance entered here is the distance from the center of the suspended center frame to the center of the inner boom BoomTrac Pro height sensor. The default value is the recommended placement for the location of the sensor. For 3 sensor system BoomTrac Pro height sensors can be placed at inner R1, L1 positions or R2, L2 position.

   Inner Sensor Offset (B)— This is the distance vertically from the bottom of the boom to the face of the BoomTrac Pro height sensor. The offset for the inner height sensors should be zero (0) because the face of the sensor level with the bottom of the boom (spray nozzles).

---

N77071-UN-24JUL07

N77072-UN-31JUL07

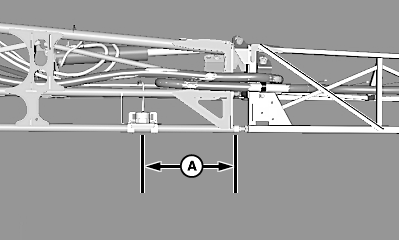

A - Distance from Hinge

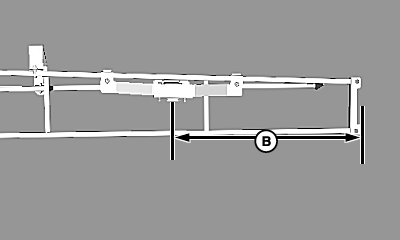

B - Distance from End

Default Locations Of The Sensors On Different Boom Sizes
Inner Boom Section			Breakaway Section
Boom Length	Distance from Hinge (A)	Distance from Center of Center Frame	Distance from End of Breakaway Section (B)	Distance from Center of Center Frame
24.4 m (80 ft.)	425.25 mm (16.75 in.)	8,737.6 mm (344 in.)	914.4 mm (36 in.)	12,007 mm (452.5 in.)
27.4 m (90 ft.)	425.25 mm (16.75 in.)	8,737.6 mm (344 in.)	914.4 mm (36 in.)	11,493.5 mm (505 in.)
30.5 m (100 ft.)	425.25 mm (16.75 in.)	8,737.6 mm (344 in.)	685.8 mm (27 in.)	14,554 mm (573 in.)
