Load Center Fuses

N83220

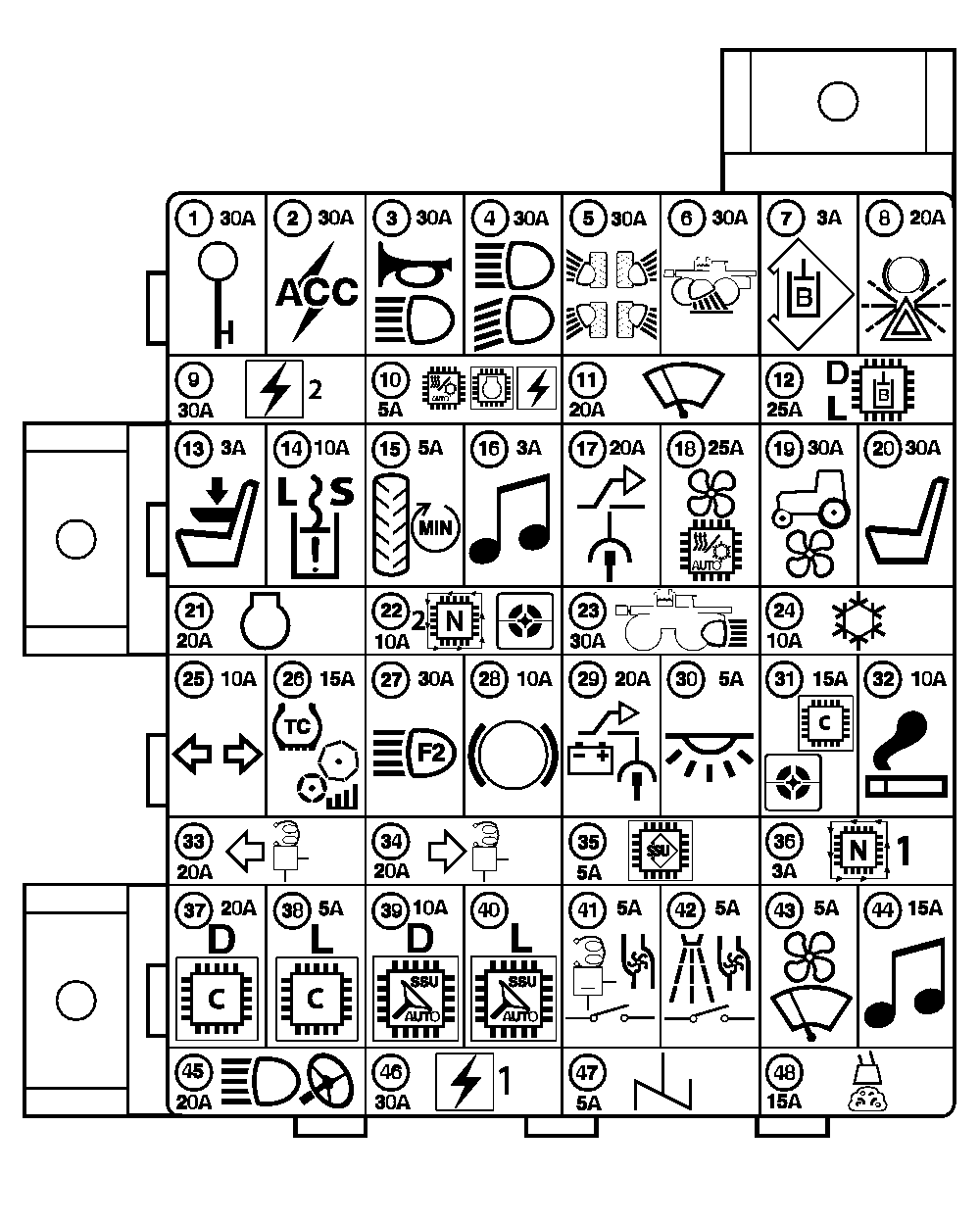

N83220-UN-06FEB09

1 - Key Switch (30 amp)

2 - Accessories (30 amp)

3 - Lights and Horn (30 amp)

4 - Road High/Low Lights (30 amp)

5 - Platform Lights (30 amp)

6 - Cab Roof and Fill Station Lights (30 amp)

7 - BHC Memory (unswitched) (3 amp)

8 - Brake, Hazard and Beacon Lights (20 amp)

9 - ELX2 (30 amp)

10 - ECU (switched) (5 amp)

11 - Windshield Wiper (20 amp)

12 - BHC Logic and Valve Power (25 amp)

13 - Armrest and Hydro Handle (3 amp)

14 - Load Sense Jam (10 amp)

15 - Wheel Speed Sensor (5 amp)

16 - Radio (3 amp)

17 - Auxiliary Plug/Accessory (20 amp)

18 - Pressurizer Blower and ATC (25 amp)

19 - Recirculator and Pressurizer Blower (30 amp)

20 - Seat (30 amp)

21 - Ignition Switch (20 amp)

22 - RCD, CAN2, GPS, UIM (10 amp)

23 - Hood Lights (Standard) (30 amp)

24 - Air Conditioning (10 amp)

25 - Turn Signal Switch (10 amp)

26 - Diff Lock/Traction Control and Shift (15 amp)

27 - Hood Lights (Optional) (30 amp)

28 - Park Brake (10 amp)

29 - Auxiliary Plug/Battery (20 amp)

30 - Dome Lights (5 amp)

31 - CCU Memory, RCD, GPS, SA (unswitched) (15 amp)

32 - Lighter (10 amp)

33 - LH Solution Valve (20 amp)

34 - RH Solution Valve (20 amp)

35 - SSU/AutoTrac Memory (unswitched) (5 amp)

36 - CAN1 (3 amp)

37 - CCU Driver (switched) (20 amp)

38 - CCU Logic (switched) (5 amp)

39 - SSU/AutoTrac Driver (switched) (10 amp)

40 - SSU/AutoTrac Logic and ATC (switched) (5 amp)

41 - Remote Load Switch and Flowmeters (5 amp)

42 - Spray Switches and Hydraulic Pump Switch (5 amp)

43 - Cab Blower and Wiper Relays (5 amp)

44 - Radio (15 amp)

45 - Steering Lights (20 amp)

46 - ELX1 (30 amp)

47 - Agitation (5 amp)

48 - Foam Marker (15 amp)
