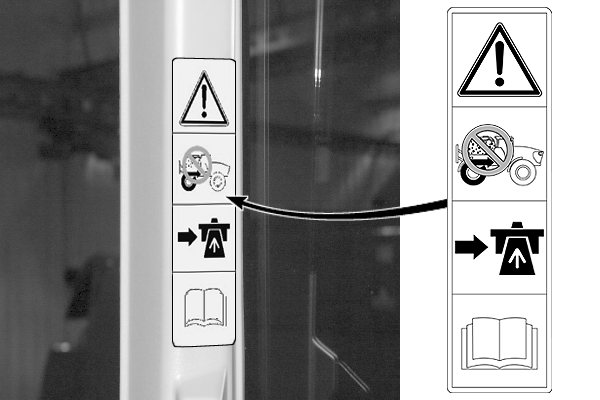

Road Transport Decal (4730 Only)

CAUTION: Avoid serious injury or death resulting from loss of control or collision due to machine overload during transport.

IMPORTANT:

N79801
N79801-UN-22FEB08

Road transport with loaded solution tank is not recommended.

Transport on roadways with liquid in the solution tank MAY BE PROHIBITED. Read all certification documents and comply with the restrictions indicated for your machine.

4730 Maximum Transport Load

Tire Size

Maximum Transport Load

320/90R46

Empty

380/90R46

1514 L (400 gal.)

420/80R46

1514 L (400 gal.)

520/85R38

1514 L (400 gal.)

Road transport in excess of 8 km (5 mi) with tank loads above these limitations may result in premature wear, failure, or personal injury.

Exceeding these limitations may void tire manufacturer’s warranty.

Always follow your local and national roadway transport regulations.

Never exceed your local or national maximum speed limits. See Speed Limit Decal in the Specification section.

OUO6092,0000365-19-20110419
