Tread Adjust Switches

NOTE: All machines come equipped with side select (A), front (B) and rear (C) tread adjust switches, even those equipped with manually adjusted tread. Switches are inactive when equipped with manual tread.

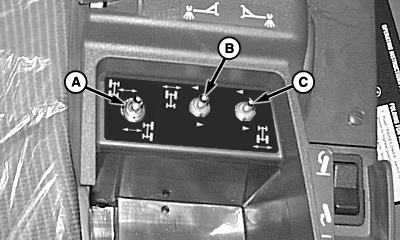

N80056-UN-26FEB08

A - Side Select Tread Adjust Switch

B - Front Tread Adjust Switch

C - Rear Tread Adjust Switch

See Setting Hydraulic Tread Width—With Hydraulic Tread Adjust Option in Chassis section.
