Checking Engine Oil Level

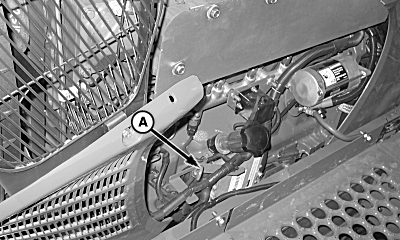

N74791-UN-16JAN07

A - Dipstick

Remove dipstick (A) and check oil level with sprayer on level ground. Oil level should be between the “ADD” and the top of the cross-hatch area on dipstick. If needed, add oil recommended in Diesel Engine Oil in the Fuels, Lubricants and Coolants section.

Do not operate engine with oil level below the “ADD” mark on dipstick.

After long storage period

Check whether dirt or other foreign bodies have collected under the hood or cab. If so, remove them.
