Using Eductor To Load Chemicals with Full Solution Tank

CAUTION: Read carefully the directions printed on the chemical manufacturer’s labels before handling chemicals or you may be exposed to hazardous materials which could poison and injure you.

IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer’s instructions for mixing the spray solution to obtain the desired application rate and effect.

1. NOTE: Solution tank is full (but has room for the volume of chemical to be added) and engine is running.

   Eductor performance may be diminished somewhat with a full tank.


   N67623-UN-24SEP04

   A - Solution Pump Switch

   B - Agitation Switch

   Operate engine at 1800 rpm.

---




2. Turn off solution pump switch (A) in armrest console.

3. Verify agitation switch (B) is in “ON” position and adjusted to desired agitation level , if necessary. (See Mixing Solution in Tank in this section.)

4. CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap, make sure Quik-Fill valve is turned off.

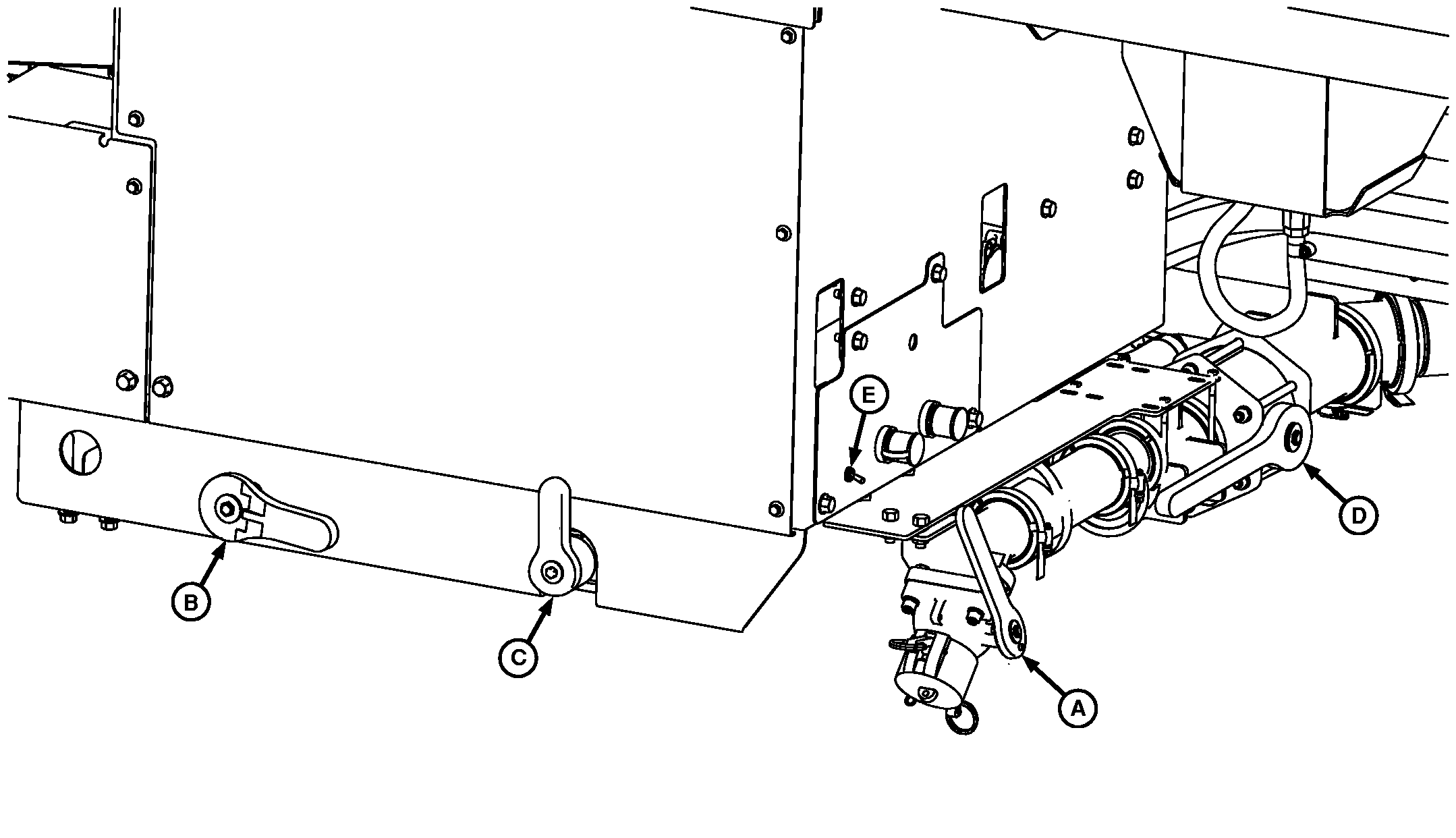

   N88456-UN-18MAY10

   A - Quik-Fill Valve

   B - Suction Valve

   C - Pressure Valve

   D - Bypass Valve

   E - Remote Solution Pump Switch

   Verify Quik-Fill valve closed.

---




5. Turn suction valve (B) to “SOLUTION TANK” position.

6. Turn pressure valve (C) to “SPRAY” position.

7. Turn bypass valve (D) to “NORMAL” position.

8. Move remote solution pump switch (E) to “LOAD” position.

   NOTE: When using remote solution pump switch (E), pump is designed to come up to operating speed slowly. Engine speed will automatically increase to 1800 rpm.

9.
   N63533-UN-11AUG03

   A - Handle

   Slightly raise eductor and pull handle (A) to unlatch eductor.

---




10. Lower eductor and raise lid.

11. NOTE:

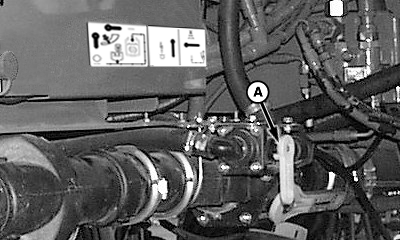

    N80113-UN-03MAR08

    A - Eductor Flow Rate Valve

    The eductor flow rate valve (A) is a variable rate valve that controls the flow rate of the eductor. The farther “ON” the valve the greater suction created for the eductor.

    Turn eductor flow rate valve (A) to full “ON” position.

---




12.
    N63539-UN-11AUG03


    N63540-UN-11AUG03

    A - Eductor Hopper Valve

    B - Eductor Rinse Valve

    C - Rinse Nozzle

    Open eductor hopper valve (A) (handle parallel with solution hose) to allow chemicals to be drawn from eductor hopper.

---




13. Pour chemicals into eductor.

14. Open eductor rinse valve (B) (turn clockwise) to rinse eductor hopper.

15. Place chemical container over rinse nozzle (C) in tank and push down on container to rinse.

16. Close eductor rinse valve.

17.
    N80113-UN-03MAR08


    N63541-UN-11AUG03

    A - Eductor Flow Rate Valve

    B - Eductor Hopper Valve

    After verifying eductor is empty, close eductor flow rate valve (A).

---




18. Close eductor hopper valve (B).

19. Place lid back on hopper and lift eductor back to it’s original position.

20.

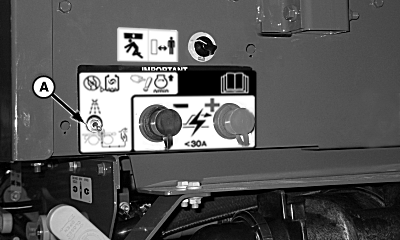

    N88454-UN-14MAY10

    A - Remote Solution Pump Switch

    Move remote solution pump switch (A) to “SPRAY” position.

---
