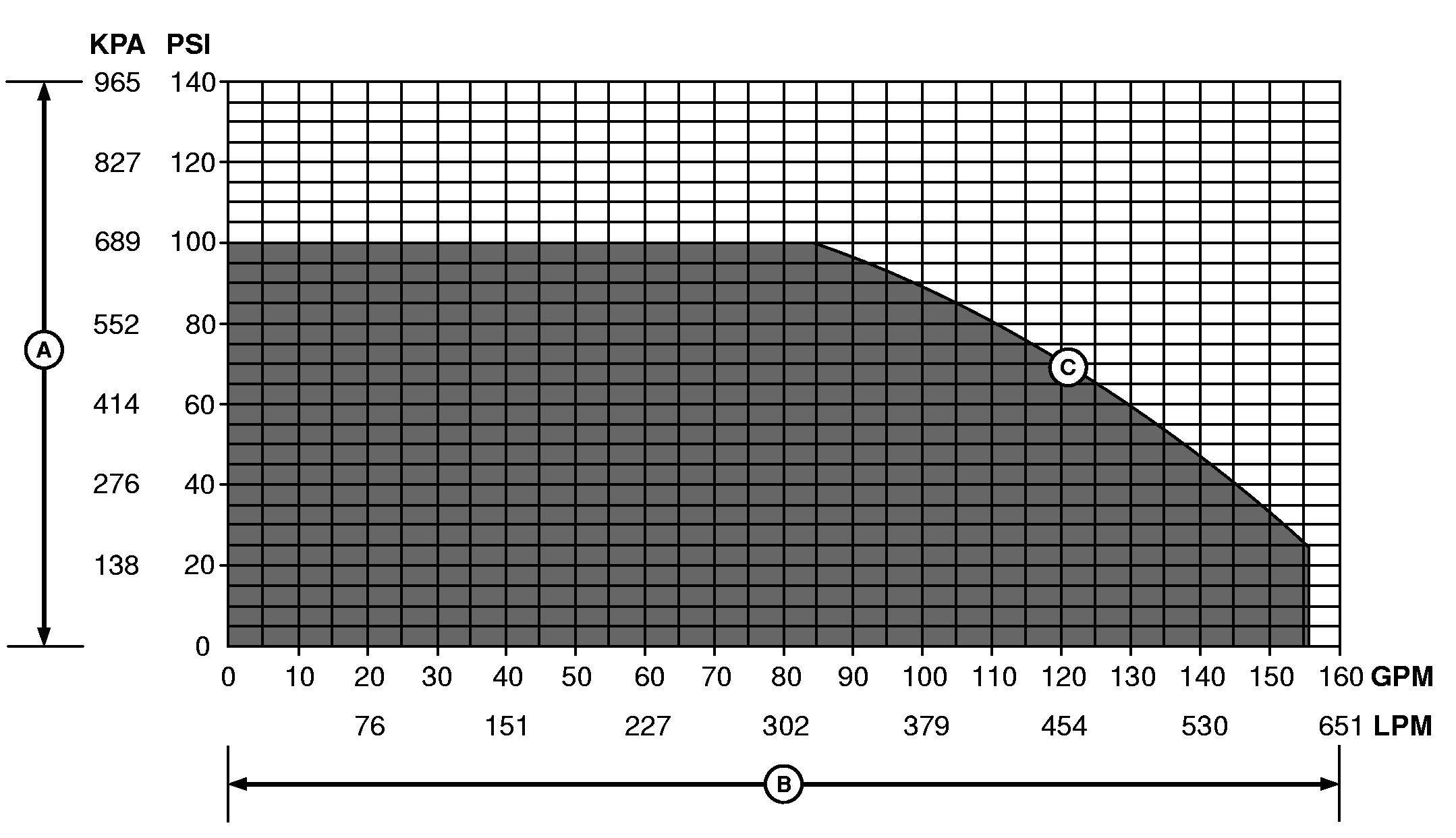

Boom Flow Characteristics (High Flow)—Boom Flow Rate vs. Pressure 24.4 M, 27.4 M and 30.5 M (80, 90 and 100 ft.) Boom

N88688-UN-25AUG10

Liquid System Performance

A - System Pressure

B - System Flow

C - High 24.4 M, 27.4 M, and 30.5 M (80, 90 and 100 ft) - Dual Flowmeter

NOTE: Boom flow rate is not recommended under 15 L/min (4 gpm) due to system limitations.

The curves show the maximum output. They are shown with agitation off. Using agitation will reduce maximum output.

* A pressure drop occurs between the pressure sensor located on boom section shut-off valves and the nozzle tip. The larger the flow rate, the larger the pressure drop.
