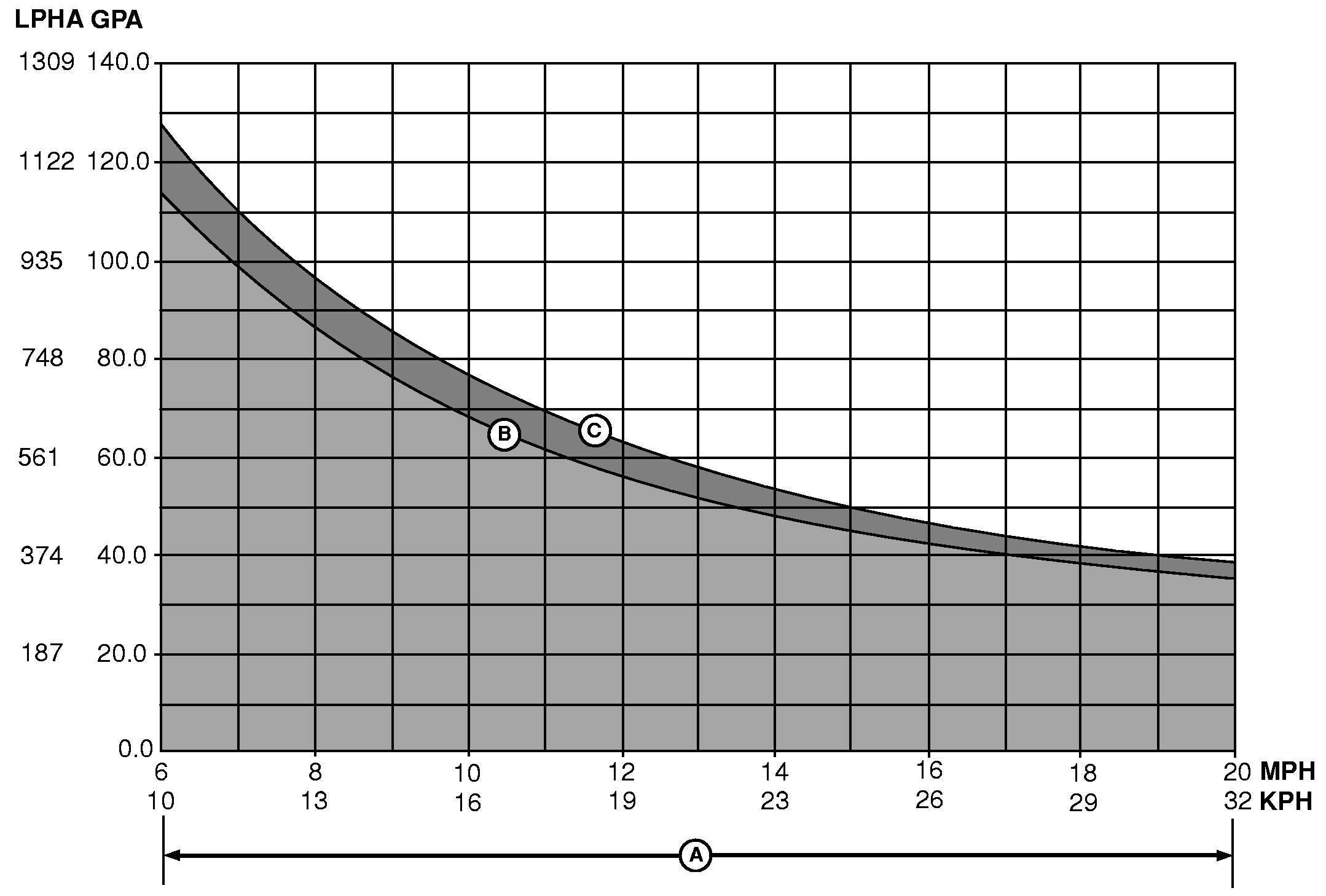

30.5 M (100 ft) Boom Flow Characteristics—Application Rate vs. Speed

NOTE: Ranges shown are based on water application.

Performance curves shown with agitation off. Using agitation will reduce maximum output.

N88684-UN-11AUG10

Application Range With 30.5 M (100 ft) Boom

A - Vehicle Speed

B - Standard Plumbing

C - High Flow Plumbing
