Replace Cab Midbody, Roof-Side, Outer Floods, and Platform Light Halogen Bulb

  1. NOTE: (For important safety information regarding halogen bulbs, see Safety Rules When Replacing Halogen Bulbs in this section before performing this procedure).

    N60070
    N60070-UN-01AUG02

    N60697
    N60697-UN-01AUG02

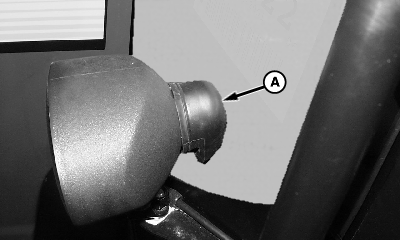

    A - Boot

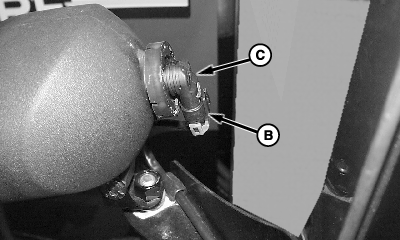

    B - Harness Connector

    C - Bulb Assembly

    Remove rubber boot (A).


  2. Disconnect harness connector (B) from bulb assembly (C).

  3. Rotate bulb assembly counterclockwise approximately 1/4 turn and remove.

  4. Install replacement bulb in reverse order of removal.

OUO6092,00003CC-19-20040326
