Setting Manual Pressure

N80101
N80101-UN-03MAR08

N74949
N74949-UN-05FEB07

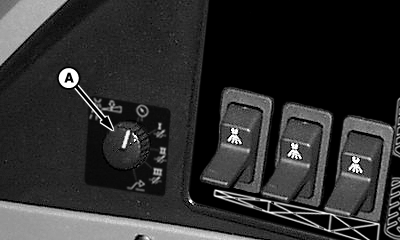

A - Rate Select Switch

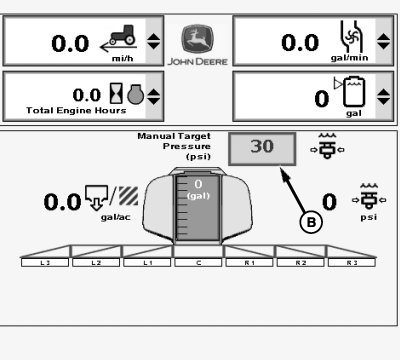

B - Input Box

The manual pressure setting allows the operator to spray at a given pressure, independent of speed and application rate.

  1. Turn rate select switch (A), located on side console, to manual pressure setting.

  2. Select each input box (B) next to “Manual Target Pressure (psi) and enter a new value using pop-up keyboard. Select the enter button to accept new value.

    NOTE: Maximum operating pressure is 689.5 ± 69 kPa (6.9 ± 0.7 bar) (100 ± 10 psi).
