Unfold Boom In Limited Height Area

IMPORTANT: Do not drive with boom fully raised. The accumulator suspension is not effective when boom is fully raised. Damage to lift system may occur if machine is driven with boom fully raised.

1.

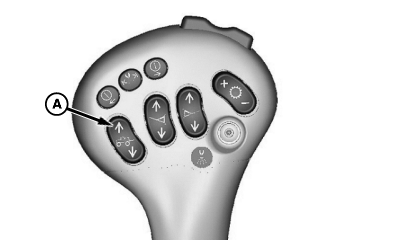

   N67771-UN-22SEP04

   A - Raise/Lower Switch

   Start engine.

---




2. Press top of raise/lower switch (A) to raise boom out of boom rests.

3. CAUTION: Avoid injury or death to others. Make sure no one is close to boom when unfolding outer sections.

   NOTE: Booms can be operated without unfolding the outer two sections of the boom on each side. Width is 18.3 m (60 ft).

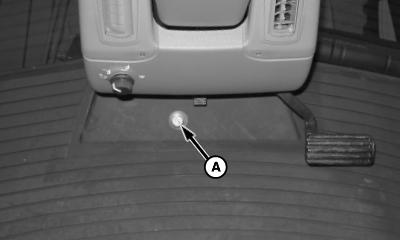

   N76725-UN-14JUN07

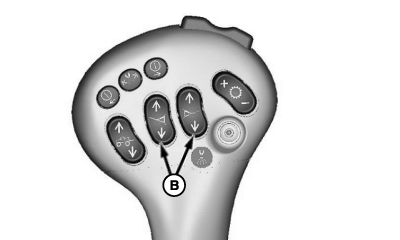

   N67772-UN-22SEP04

   A - Fold Mode Switch

   B - Fold/Level Switches

   Press and hold fold mode switch (A) while pressing bottom of fold/level switches (B) until inner wing sections of boom unfold.

---




4.

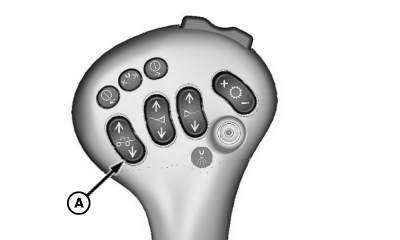

   N67773-UN-22SEP04

   A - Raise/Lower Switch

   Press bottom of raise/lower switch (A) to lower centerframe to lowest position.

---




5.

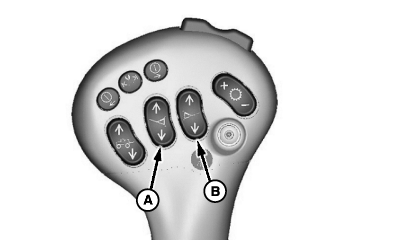

   N84582-UN-30APR09

   Press Bottom Of Fold Level Switches

   A - Fold Level Switch, Left-Hand

   B - Fold/Level Switch, Right-Hand

   Press bottom left-hand fold/level switch (A) or bottom right-hand fold/level switch (B) to tilt boom wings to desired spray angle.

---




6.

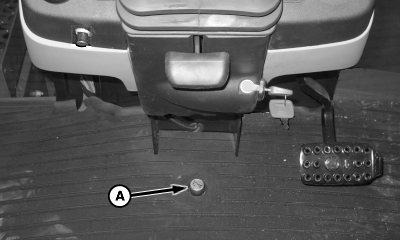

   N84392-UN-21APR09


   N67772-UN-22SEP04

   A - Fold Mode Switch

   B - Fold/Level Switches

   Press and hold fold mode switch (A) while pressing bottom of fold/level switches (B) until outer wing sections of boom unfold. Release fold/level switches and fold mode switch.

---




7.

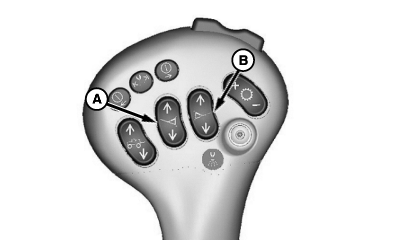

   N67774-UN-22SEP04

   A - Fold Level Switch, Left-Hand

   B - Fold/Level Switch, Right-Hand

   Press left-hand fold/level switch (A) or right-hand fold/level switch (B) to tilt boom wings to desired spray angle.

---
