Operating Turn Signals, Horn and High/Low Beam

N64768-UN-09JAN04

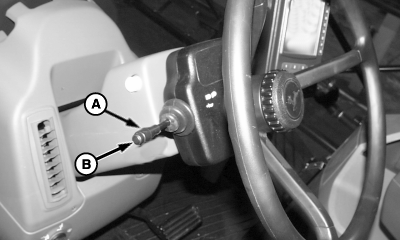

A - Lever

B - End of Lever

Turn Signals

Push lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

Horn

Push inward on end of lever (B) to activate horn.

High/Low Beam

Push lever forward to activate high beam head lights. Pull lever into center position to operate low beam. Pull lever toward you and release to flash high beam.

Dim headlights for oncoming vehicles. Adjust headlights correctly. (See Aiming Headlights in the Electrical System Service section.)
