Replacing HID Driving Light Bulbs—If Equipped

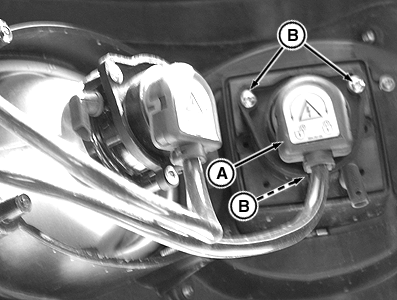

RXA0082342
RXA0082342-UN-14JUL05

Right-Hand Side Shown

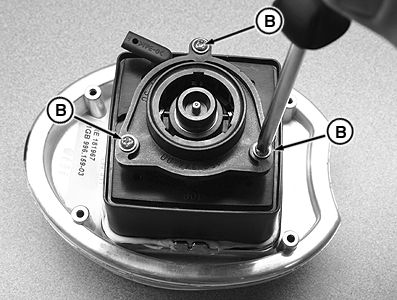

RXA0082338
RXA0082338-UN-14JUL05

Retainer

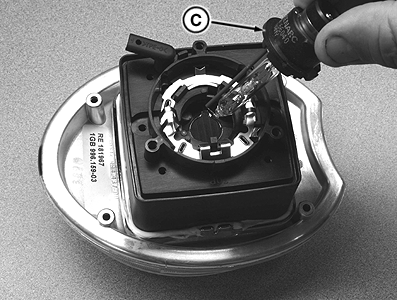

RXA0082340
RXA0082340-UN-20JUL05

Light Bulb

A - Bayonet Connector

B - Screws

C - Light Bulb

  1. NOTE: For important safety information, see Handling HID Light Bulbs Safely in this section before performing this procedure.

    Raise hood.

  2. Twist and remove bayonet connector (A).

  3. Remove three screws (B) and retainer, then remove light bulb (C)

  4. Install new bulb in reverse order of removal.

  5. Adjust headlights, if necessary. (See procedure in this section.)

OUO6092,00005BA-19-20110429
