Interior Convenience And Outdoor Sentry Lights

N63984-UN-21OCT03

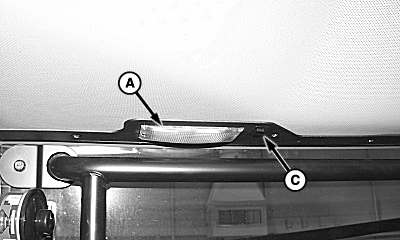

Interior Convenience Light

N63985-UN-21OCT03

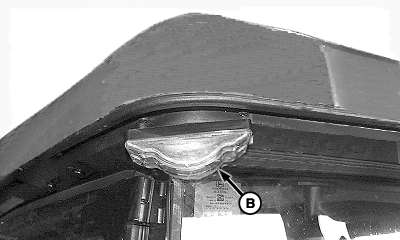

Outdoor Sentry Light

A - Interior Convenience Light

B - Outdoor Sentry Light

C - Three Position Switch

Interior convenience light (A) and outdoor sentry light (B) illuminate simultaneously and are both controlled using three position switch (C).

• OFF position
• ON position—Interior convenience light and outdoor sentry light will illuminate when the cab door is opened and will go out when the door is closed.
• ON position—Interior convenience light and outdoor sentry light will illuminate until the switch is returned to either of the other two positions.
