Operating Lights

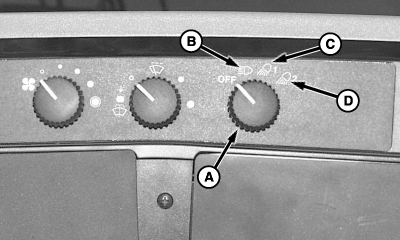

N66616-UN-27JUL04

A - Light Switch

B - Road Position

C - Field Position 1

D - Field Position 2

CAUTION: Accidental collision with another vehicle can cause serious injury or death to you or others. Always comply with traffic regulations when driving machine on a road. Dim headlights to low-beam for oncoming vehicles.

To avoid motorist confusion, do not operate work lights when transporting on public roadways.

Light switch (A) has four positions—OFF, Road (B), Field 1 (C), Field 2 (D), and operates regardless of the key position.

OFF POSITION

Turns off all exterior lighting with exception of warning lights if hazard light switch is on.

NOTE: (See Light Operation Table in this section.)
