Adjusting Headlights

1.
   RW26898-UN-28MAR00

   A - Headlights

   B - Distance from Center of Headlight to Ground

   C - Horizontal Line on Wall

   D - Border of Bright Area

   E - 10% of Distance (B)

   Empty sprayer solution tank.

---




2. Park tractor on a level surface with headlights (A) 7.5 meters (25 ft) from a vertical wall.

3. Measure the distance (B) from the center of a head light to the ground.

4. Mark a horizontal line (C) on the wall, the same distance from the ground as (B).

5. Set headlights on low beam and observe bright areas on the wall.

6. Adjust headlights so the upper border of bright area (D) is at least one tenth of distance (B) below line (C).

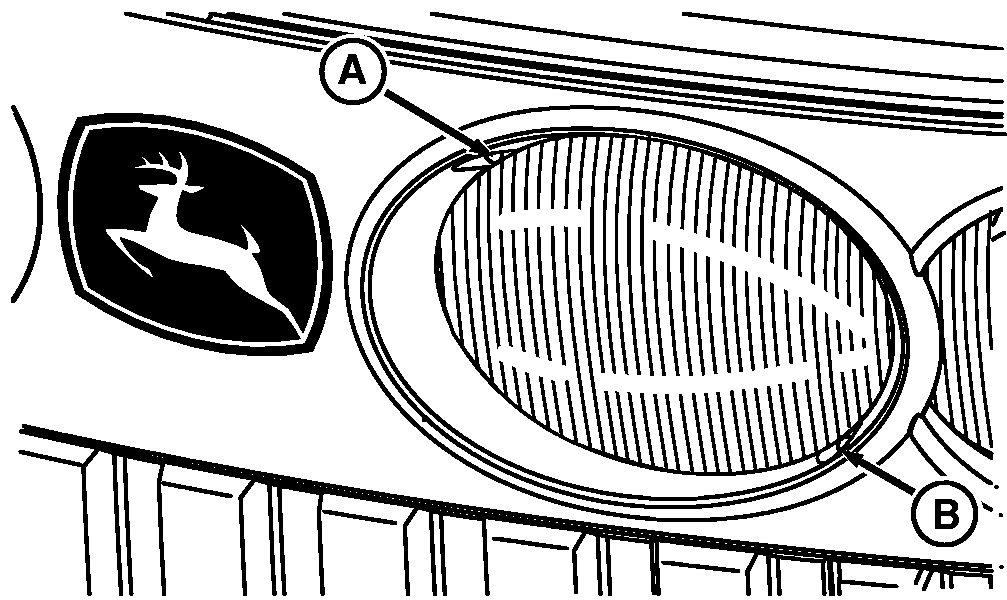

RXA0068497-UN-09SEP03

Left-Hand Side Shown

A - Screw

B - Screw

• Turn screw (A) to position headlight in and up.
• Turn screw (B) to position headlight out and down.
