Back of Display

PC8863-UN-02NOV05

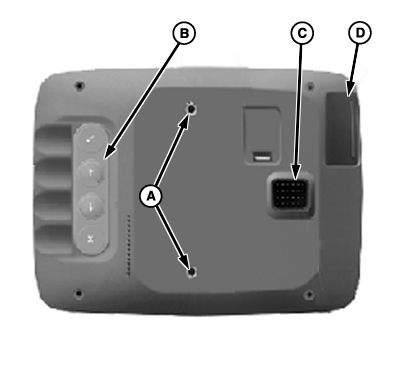

Backside of Display

Backside of Display contains:

Display Mounting Holes (A)—attach to bracket on machine

Secondary Navigational point (B)—provides backup navigation with display

Data Card Door/Slot (C)—houses data card used for data collection and saving selected display and implement settings

Display Connector (D)—connects vehicle wiring harness plugs with display for system power and communication

NOTE: Backside of display will all have label with display model and serial number on it.
