Setting Application Rates

1.

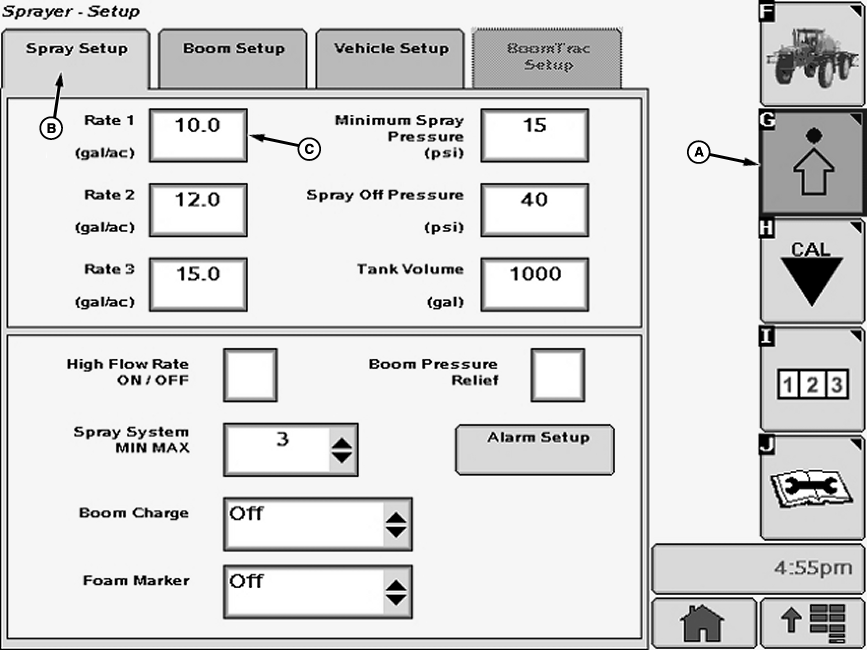

   N74384-UN-12JAN07

   A - Setup Softkey

   B - Spray Setup Tab

   C - Input box

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. Select each input box (C) to be changed and enter a new value using pop-up keyboard. Select the enter button to accept new value.
