Turning Sections Off Alarm On/Off

N74751
N74751-UN-17JAN07

N74753
N74753-UN-17JAN07

A - Setup Softkey

B - Spray Setup Tab

C - Alarm Setup Button

D - Check Box

E - Enter Button

The “Sections Off” alarm occurs when one or more of the spray sections are disabled by the section switches when Master Spray ON/OFF switch on multifunction control handle is activated.

To turn the alarm “ON” or “OFF”:

  1. Select the Setup softkey (A) to view the setup menu.

  2. Select the “Spray Setup” tab (B).

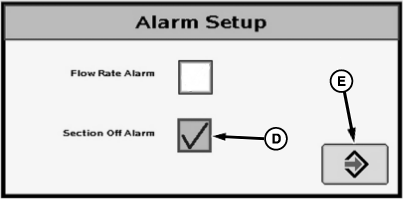

  3. Press “Alarm Setup” button (C). The Alarm Setup screen will appear.

  4. NOTE: A check mark in the box indicates that “Section Off Alarm” is activated.

    Select check box (D) next to “Section Off Alarm” and a check will appear inside box activating item. To deactivate a check box, touch check box to remove the check.

  5. Select the enter button (E) to return to “Spray Setup” screen.

OUO6092,0000D76-19-20070201
