Setting Number of Boom Sections, Number of Nozzles and Spacing

1.

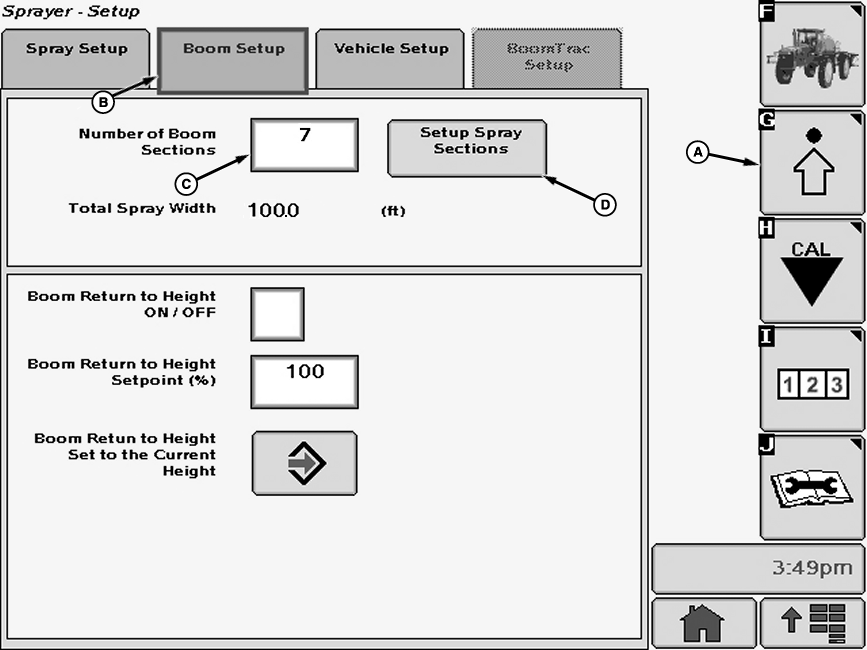

   N74754-UN-29JAN07

   A - Setup Softkey

   B - Boom Setup Tab

   C - Input Box

   D - “Setup Spray Sections” Button

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Boom Setup tab (B).

3. Select each input box (C) next to “Number of Boom Sections” to be changed and enter a new value using pop-up keyboard. Select the Enter button to accept new value.

4. Press “Setup Spray Sections” button (D). The Setup Spray Sections screen will appear.

5.

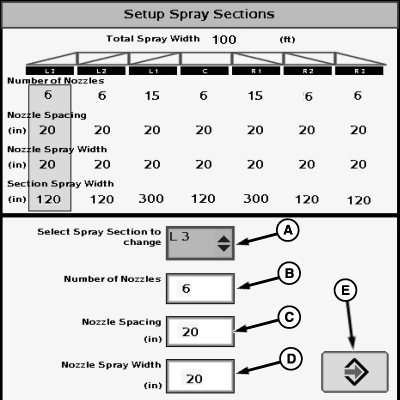

   N74757-UN-29JAN07

   A - Drop-Down Box

   B - Input box

   C - Input box

   D - Input box

   E - Enter Button

   Select drop-down box (A) next to “Select Spray Section to change” and select section to change from menu.

---




6. Select each input box (B-D) to be changed and enter a new value using pop-up keyboard. Select the Enter button to accept new value. (Repeat for each section on boom.)

   NOTE: In broadcast spraying only, nozzle spray width is equal to nozzle spacing. Refer to back side of nozzle tip calculator to determine effective tip spray width.

   NOTE: Section spray width and total width are calculated automatically from above settings.

7. Select the enter button (E) to accept new values.
