Recording Engine Hours

N74759
N74759-UN-21FEB08

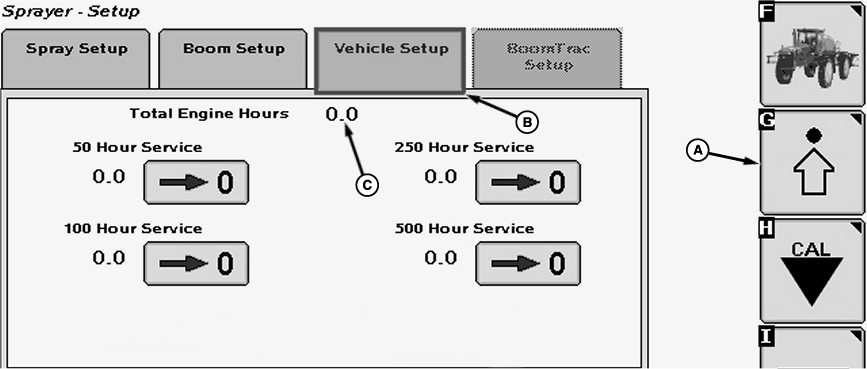

A - Setup Softkey

B - Vehicle Setup Tab

C - Engine Hours

NOTE: Engine hours are only displayed on the SprayStar display and will not be lost during loss of power to the SprayStar computer. Changing display monitors will not lose engine hours.

To find engine hours on sprayer:

  1. Verify key switch is “ON”.

  2. Select the Setup softkey (A) to view the setup menu.

  3. Select the Vehicle Setup tab (B).

  4. Engine hours are displayed at location (C).

OUO6092,0000D7A-19-20070328
