Controller Diagnostics

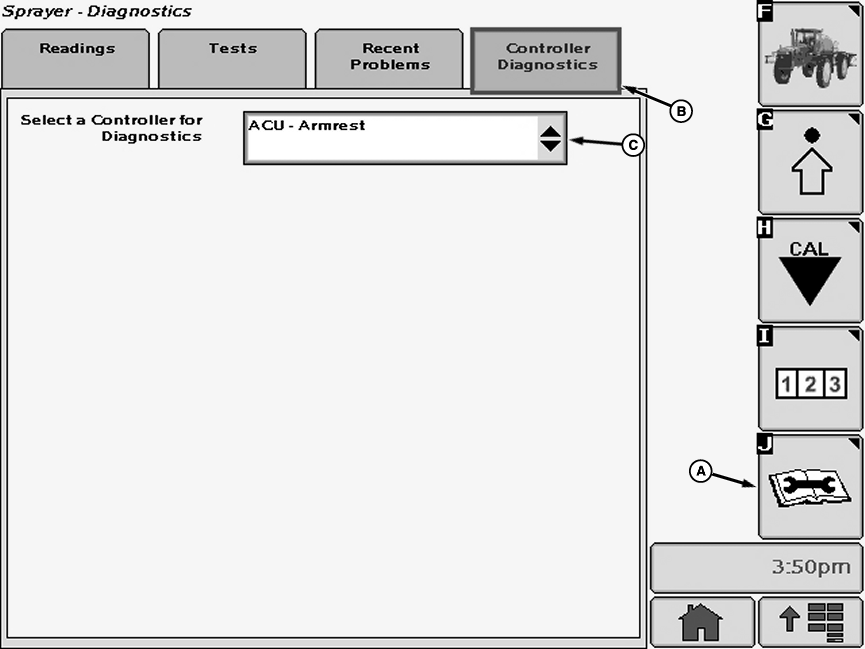

  1. N74857
    N74857-UN-18JAN07

    A - Diagnostics Softkey

    B - Controller Diagnostics Tab

    C - Drop-Down Box

    Select the Diagnostics softkey (A) to view the sprayer diagnostics menu.



  2. Select the Controller Diagnostics tab (B).

  3. Select drop-down box (C) next to “Select a Controller for Diagnostics” and select from controllers available.

OUO6092,0000D84-19-20070207
