Spray System Master ON/OFF Switch

N63294-UN-15JUL03

N74867-UN-19JAN07

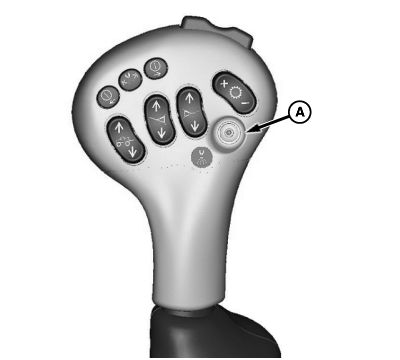

A - Switch

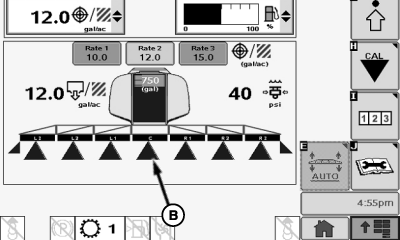

B - Sections Spraying

Press switch (A) to turn enabled boom sections ON and press again to turn OFF.

LED in center of switch will illuminate when switch is on.

Sections (B) that are actively spraying once Master ON/OFF switch is pressed, will appear on display with a dark background and a lighter letter with a cone showing below the section.
