Installing Fire Extinguisher (If Equipped)

1.
   N74933-UN-30JAN07


   N74934-UN-30JAN07


   N74935-UN-30JAN07

   A - Cap Screw

   B - Cap Screw

   C - Spacer

   D - Plate

   E - Fire Extinguisher Bracket

   F - Cap Screws, M6 x 16

   G - Fire Extinguisher

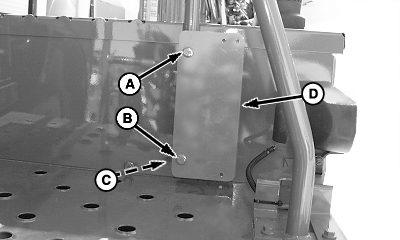

   Remove and cap screws (A and B) retaining hand rail to platform. Retain upper cap screw. Discard lower cap screw.

---




2. Attach plate (D) to platform and handrail using retained screw (A), provided M10 x 110 cap screw (B) and spacer (C) (with spacer between plate and hand rail.

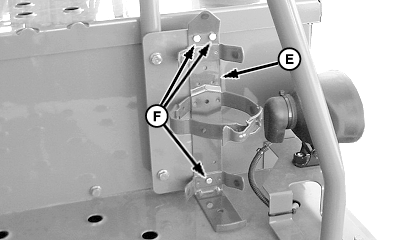

3. Attach fire extinguisher bracket (E) to plate using M6 x 16 cap screws (F) and nuts.

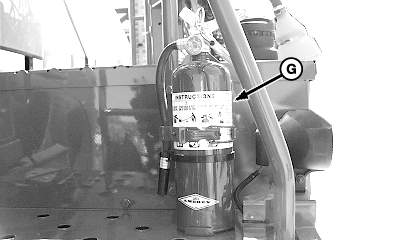

4. Install fire extinguisher (G) in bracket.
