Fence Row Nozzles—If Equipped

N66251-UN-12JUL04

N74868-UN-19JAN07

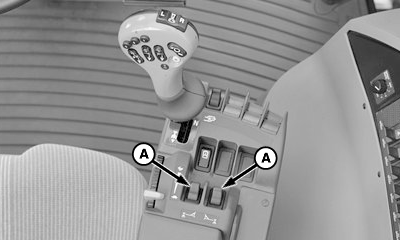

A - Fence Row Nozzle Switches

B - Cone

C - Cone

No setup in the SprayStar system is needed for the fence row nozzles.

The SprayStar system will recognize the fence row nozzles when the fence row nozzle switches (A) are installed on the console. It will automatically adjust the Spray Rate Controller when the fence row nozzle is turned on.

When the fence row nozzle is turned on, a cone (B) or (C) will appear at the end of the boom sections on Sprayer Main Page.

The hectare (acre) counter on SprayStar display will record the additional spacing of 508 mm (20 in.) per end row nozzle when turned on.

NOTE: Fence row nozzle will not operate if outer section (L3 or R3) on corresponding side is not enabled.
