Controlling Air Flow

1.
   N65875-UN-12JUL04


   N63043-UN-08JUL03

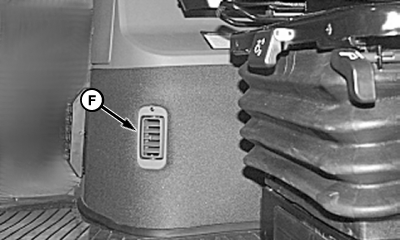

   Side Console Vent


   N63285-UN-15JUL03

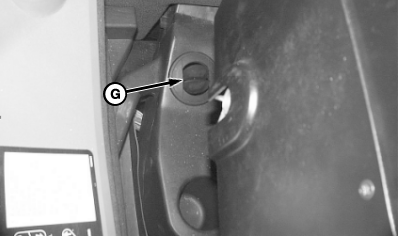

   Rear Vent

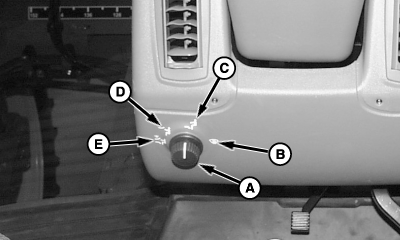

   A - Air Flow Knob

   B - Windshield

   C - Side Console and Rear Vent

   D - Dash

   E - All Vents

   F - Side Console Vent

   G - Rear Vent

   Turn air flow knob (A) to direct air flow between windshield (B), side console and rear vent (C), dash (D) or a combination of all (E).

---




2. Direct side console vent (F) and rear vent (G) (at right-hand rear seat base) as needed.
