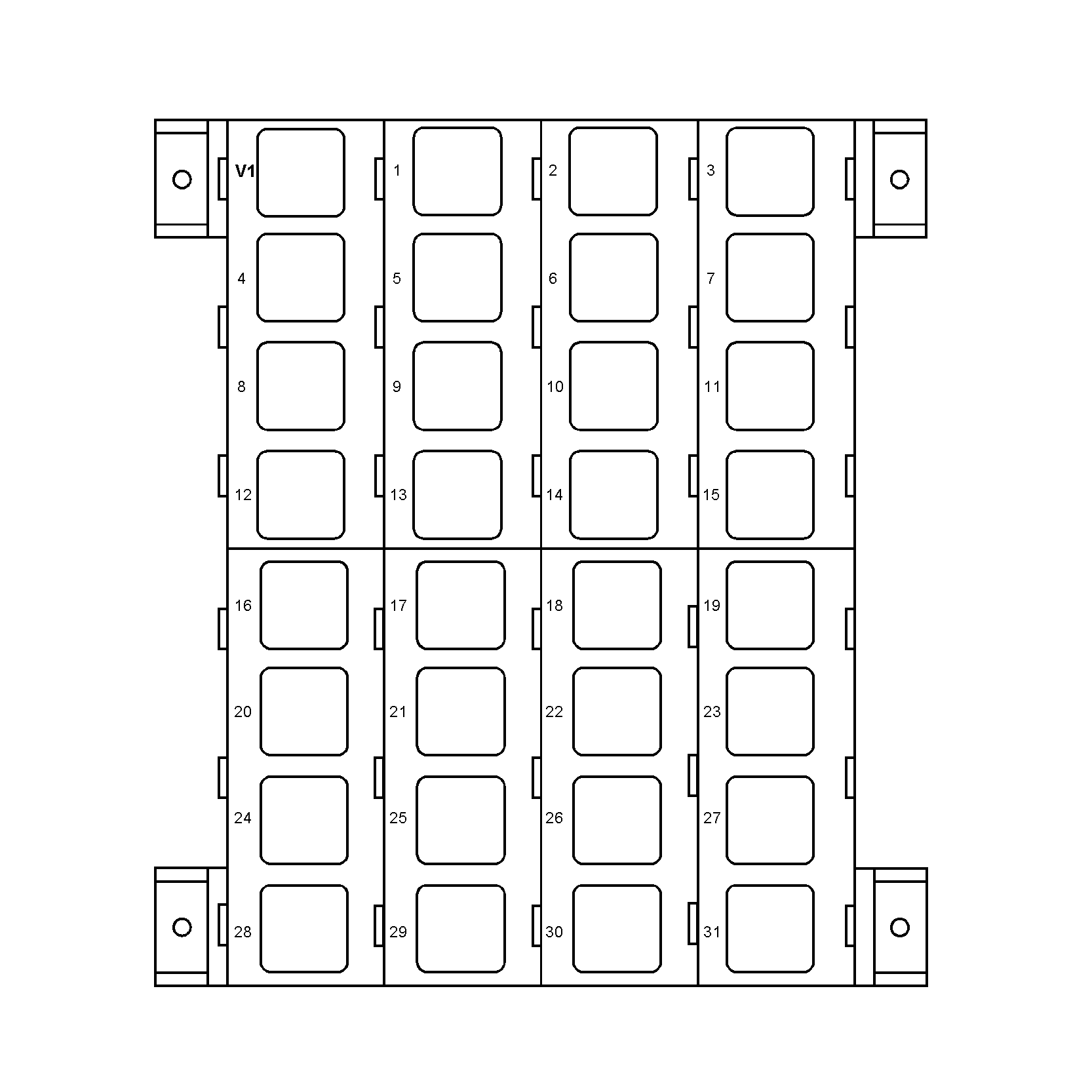

Load Center Relays and Diodes

N69205-UN-28FEB05

V1 - Flash Lamp Diodes—Roof Lamp Control Diodes

1 - Front Shift Relay

2 - Load Sense Jamming Relay

3 - Reverse Boost Relay

4 - ELX1 Relay

5 - Accessory Power Relay

6 - Traction Control Relay

7 - Steering Lights Relay

8 - Wiper Relay

9 - Wiper Latch Relay

10 - Wiper Pulse Relay

11 - Cab Blower Relay

12 - ELX2 Relay

13 - Cab Pressure Blower Relay

14 - Air Conditioner Clutch Relay

15 - Neutral Start Relay

16 - BHC Logic and Valve Relay

17 - Standard Hood Lights Relay

18 - Optional Hood Lights Relay

19 - Left-Hand Solution Valve Power Relay

20 - Park Brake Relay

21 - Rear Shift Relay

22 - Auxiliary Plug Relay

23 - Horn Relay

24 - Chassis Lights Relay

25 - Auxiliary Lights Relay

26 - Hi/Low Enable Lights Relay

27 - Hi/Low Select Lights Relay

28 - Right-Hand Warning Light Relay

29 - Left-Hand Warning Light Relay

30 - Brake Light Relay

31 - Right-Hand Solution Valve Power Relay
