Check Coolant Level—Daily
N67762-UN-23SEP04

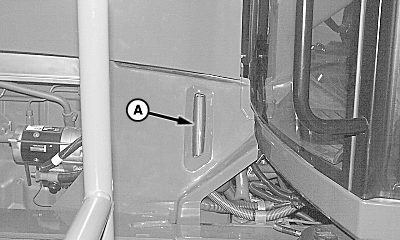

A - Overflow Tank
Check coolant level, using sight tube. Coolant level should be between “HOT LEVEL” and “COLD LEVEL” marks on overflow tank sight tube (A) depending on engine temperature.If coolant level is low, check for any signs of leakage and repair if necessary. Check all hose clamps for tightness. Add soft water, antifreeze mixture, as specified in Diesel Engine Coolant in the Fuels And Lubricants section to overflow tank.
IMPORTANT: Add 30 ml of John Deere Coolant Conditioner for every liter of coolant added (4 fluid ounces per gallon) except if John Deere Antifreeze Summer Coolant or John Deere COOL-GARD is used. (See Supplemental Coolant Additives in the Fuels And Lubricants section.)
OUO6092,0000EDA-19-20070605 |
