Adjust Steering Wheel

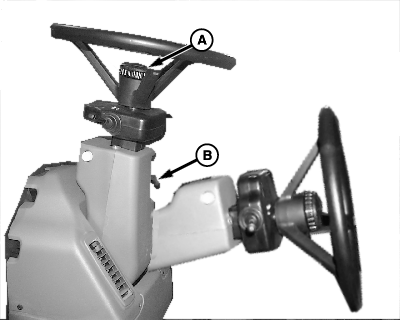

N60843-UN-10SEP03

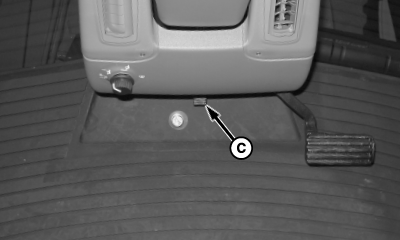

N76061-UN-08JUN07

A - Knob

B - Lever

C - Foot Pedal

Telescope

Rotate knob (A) counterclockwise to release lock. Extend or retract steering wheel to desired position. Rotate knob clockwise to lock.

Tilt

Pull up on lever (B) and move the steering column to the desired position. Release lever to lock.

Memory

Push down on foot pedal (C) on floor of cab to permit steering column to move up, out of operator’s way for easy entry or exit.

Push down on foot pedal and pull down on steering wheel to return steering column to previous setting.
